Linux | Ubuntu Server Installation Guide for AIQ (GraalVM 11 Based)

Exclude files and folders from scheduled scans

The size of the Appvance IQ installation package is around 2 GB and is not expected to change until a new build is released. This folder should be excluded from the daily, weekly, or monthly scheduled scans as it will take up valuable scanning time. If the following folders are not excluded, you may see some unexpected behavior.

The list below are some of the top Anti-virus from which the files/folders of Appvance IQ should be excluded:

  • AVG Anti-virus
  • Avast Anti-virus
  • Kaspersky Anti-virus
  • McAfee Virus Scan
  • Norton Anti-virus
  • Symantec Endpoint protection
  • Windows Defender

Installation Process

The instructions below assume that the Linux server is running Ubuntu. Ubuntu's package manager is apt-get.

If your Linux server is running Redhat / Fedora, replace the lines with corresponding yum commands.

  1. Initial steps.

    sudo chmod go+w /etc/hosts
sudo echo "127.0.0.1 $HOSTNAME" >> /etc/hosts
sudo chmod go-w /etc/hosts
sudo apt-get update -y
sudo apt-get install wget -y
sudo apt-get install zip -y

  2. Increase the open files linux limit in /etc/security/limits.conf.

    In a text editor just add the following lines at the end of the /etc/security/limits.conf file. The leading star ( * ) character is important.

    * soft nofile 500000
    * hard nofile 500000

  3. Getting GraalVM Community edition link.

    Navigate to GraalVM site https://www.graalvm.org/downloads/ and click the download button as below. On the release page you will be able to choose the correct platform for Java 11 depending on the technology supporting the server (AArch64 or x86-64). Copy the URL related to the download link.

  4. Installing GraalVM Open JDK Community edition.

    Using the download URL from the previous step, follow next steps to download, unpack and setup GraalVM Open JDK.

    Copy
    cd /opt
    wget https://github.com/graalvm-ce-builds/releases/download/vm-22.1.0/graalvm-ce-java<version>-linux-amd64-<version>.tar.gz   // REPLACE LINK WITH PATH OBTAINED FROM PREVIOUS STEP
    tar -xzf graalvm-ce-java<version>-linux-amd64-<version>.tar.gz.  // REPLACE LINK WITH FILE NAME WITH THE ONE FROM PREVIOUS STEP
    export PATH=/<path>/<to>/<graalvm>/bin:$PATH
    export JAVA_HOME=/<path>/<to>/<graalvm>cd ~
    java -version

  5. When there are multiple versions of Java on the system.

    In case where system need to have more than one java version, need to select the graalvm as defaullt to AIQ can work properly.

    Adding a new alternative for "java" the third parameter assume that this is the only option for Java, in case there is another java version already installed, this third parameter would be 2, and so on.

    $ sudo update-alternatives --install /usr/bin/java java  /<path>/<to>/<graalvm>  1
$ sudo update-alternatives --config java

  6. Download and unzip AIQ

    cd /opt
sudo mkdir aiq
cd aiq
wget "https://<aiq_build_url)/<aiq_build_file>.zip".  (get the zip file from the latest release notes)
unzip <aiq_build_file>.zip
cd /opt
sudo chmod +x -R aiq
sudo chown -R ubuntu:ubuntu aiq

    For Azure Deployments create aiq sudo user: sudo chown -R aiq:aiq aiq

    AIQ will be installed after this setting. Just need to configure to point to the MySQL results database.

Installing MySQL 8 Community Server

The following step is not required if you will be using a separate MySQL server. Installing a separate MySQL server is recommended.

  1. Install local MySql 8 community server and run queries to set up the database

    If you will be saving to another MySQL server like Amazon RDS or Oracle DB server, this step is not necessary.

  2. Install MySQL 8 community server:

    1. sudo apt-get install mysql-server
    2. When prompted, enter (and note) password mysql -u root -p < /opt/aiq/aiq_distribution/TestNode/webapps/AppvanceServer/WEB-INF/classes/database/MySQLInitial.sql
    3. Password will be asked after the above query, provide valid passwordmysql -u root -p < /opt/aiq/aiq_distribution/TestNode/webapps/AppvanceServer/WEB-INF/classes/database/MySQLAppvance.sql

  3. Optional. Install Firefox and Xvfb (for web testing with Firefox browser only, so this step is not required if controller will not be running Firefox test designer tests.) sudo apt-get install firefox -ysudo apt-get install xvfb -y

Starting AIQ with /etc/rc.local

The following steps are related to setting the start of AIQ services on boot-up of the system.

There are two options for this: via /etc/rc.local file or by setting up a systemd service. This last option is recommended for test nodes running API test nodes.

This method is preferred versus systemd as rc.local startup is compatible with one click upgrade using Lab Management.

  1. Start aiq services as background process using rc.local, giving write permissions to rc.local.sudo chmod -R +x /etc/rc.localsudo nano /etc/rc.local

  2. Paste the following lines into /etc/rc.local:

    cd /opt/aiq/aiq_distribution/ && ./Appvance.sh

    Only in the case you want to use your controller to run Firefox test designer test cases then have your /etc/rc.local like the following:

    This requires you to install the xvfb X11 window server in ubuntu.

    Xvfb :99 -ac -screen 0 1280x1024x24 &export DISPLAY=:99
cd /opt/aiq/aiq_distribution/ && ./Appvance.sh

    For Azure Deployment on Ubuntu:

    Copy
    #!/bin/sh -e

    export JAVA_HOME=/<path>/<to>/<graalvm>export PATH=/path/to/<graalvm>/bin:$PATH


    Xvfb :99 -ac -screen 0 1280x1024x24 &export DISPLAY=:99
    cd /opt/aiq/aiq_distribution/ && ./Appvance.sh

    exit 0



  3. Save file changes:

    • Press Control + x

    • Press y + Enter

  4. Reboot.

  5. Navigate to http://servername:8080 or https://servername:8443.

  6. Login to AIQ using appvance/appvance.

Troubleshooting

If AIQ does not start:

  • curl localhost:8080 to check for a response.
  • As a root check journalctl | grep rc.local to see if AIQ started successfully.
    • If you see a "/etc/rc.local is not marked executable, skipping" error, run the following command to make the rc.local file executable: sudo chmod +x /etc/rc.local

Starting AIQ Using Systemd Service

Recommend this setting for test nodes that will be used for API load testing to make sure there are plenty of file handles available.

Current limitation for this method is that the one-click system upgrade using Lab Management does not support machines starting AIQ as a systemd service.

  1. Navigate to the system directory: cd /etc/systemd/system

  2. Create a text file in the system folder named appvance.service with following contents:

    Copy
    [Unit]
    Description=Start Appvance IQ servicesAfter=syslog.target

    [Service]
    User=ubuntu
    Type=simple
    LimitNOFILE=1000000
    LimitNPROC=20000
    ExecStart=/bin/bash /opt/aiq_distribution/TestNode/startup.sh
    WorkingDirectory=/opt/aiq_distribution/TestNode
    TimeoutStartSec=0

    [Install]
    WantedBy=default.target



  3. Execute this command: systemctl daemon-reload

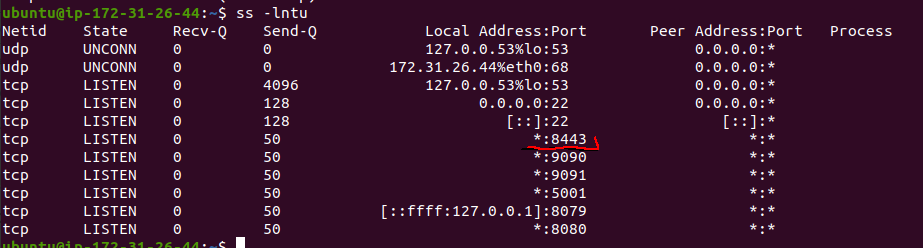

  4. Once installed, open port 8443 to public access.

  5. If the port is not open, type:

    sudo iptables -A INPUT -p tcp --dport 80 -j ACCEPT

    sudo service iptables restart

    sudo reboot

  6. After that enter the following browser URL : https://<Public IPv4 DNS>:8443/UI/index.html
