Running Data-enabled SoapUI Test

SoapUI support was removed in release 5.2.0 of AIQ.

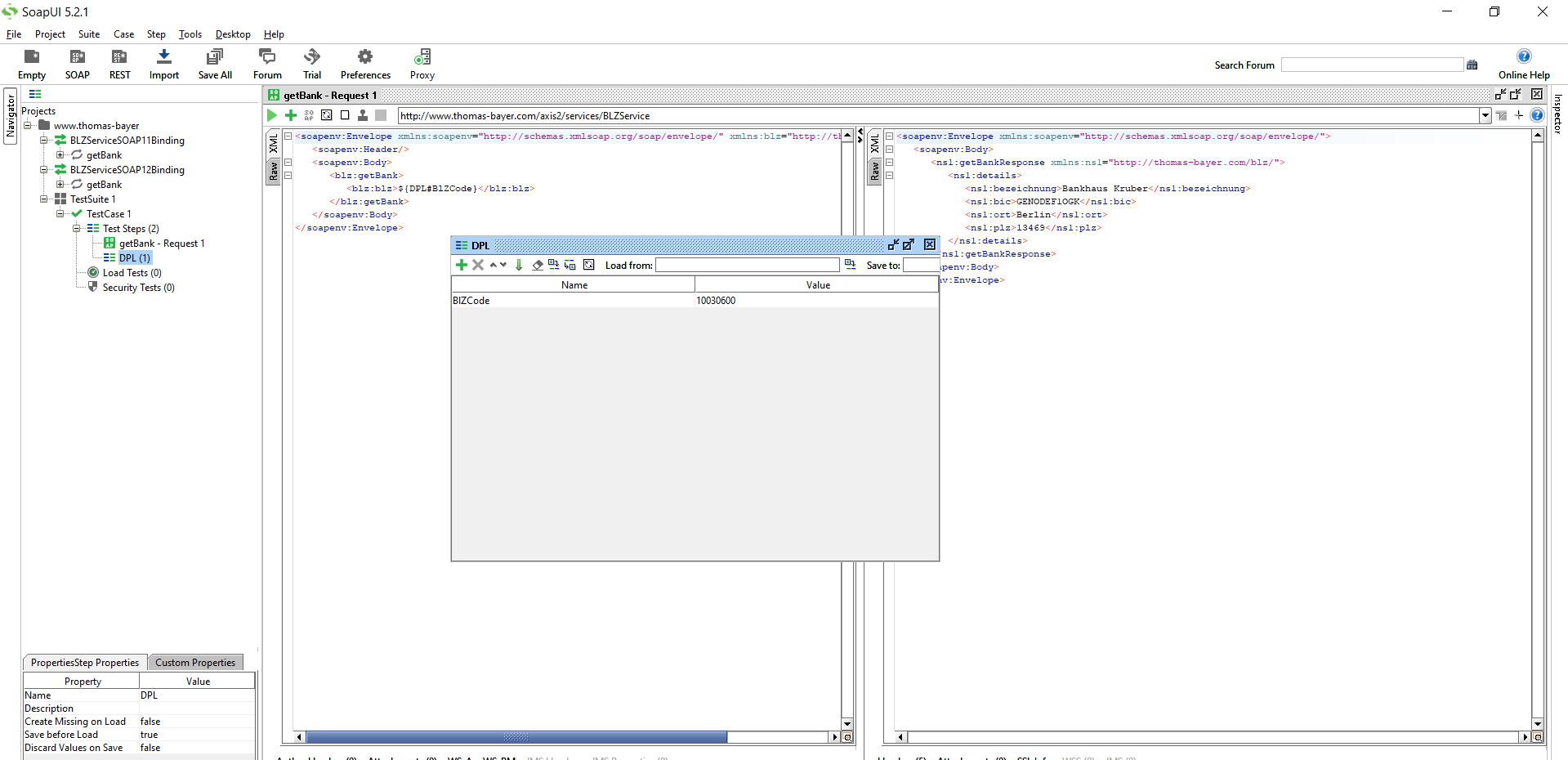

Make sure the SoapUI project created has the properties defined and the request is data enabled properly as shown below in the screenshot.

Save the project in SoapUI.

From Appvance IQ:

  1. Navigate to the Appvance IQ Home screen and click Build

  2. Click File ->New to create a new scenario

  3. Select Functional Test from the Scenario Test Type drop-down

  4. Click the Test Management tab and check: "Repeat scenario's test cases 2 times"

  5. Click the Test Cases tab and click the link for Add test case link

  6. Enter the Test case name and Script name

  7. Select "Service Suite-SoapUI" from the Script Type drop-down

  8. Click Browse and browse the Soap UI file and then the Test Suite and then the Test Case from the drop-down. Save the test case

  9. Click the Locations tab

  10. 10. Enter Name: localhost and URL: http://localhost:8080/TMServer/ws/TestNode (Should be added by default)

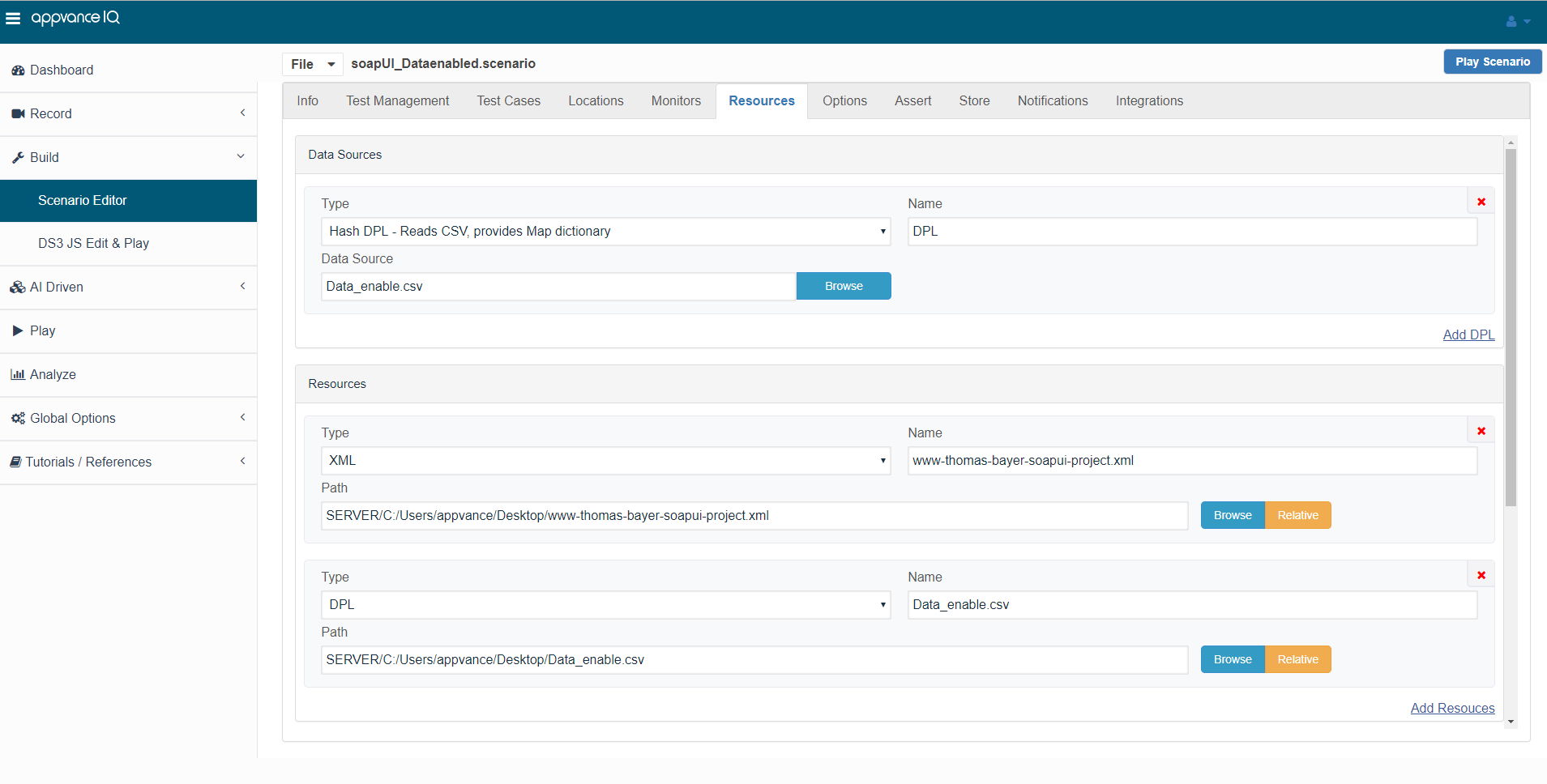

  11. Navigate to Resources and make sure SoapUI bundle with version 5.2.1 is added by default

  12. Also make sure the resources are added with Name, Type, and the correct path of the XML file

  13. 13. Go to the Resources tab, Click Add DPL, Select 'Hash DPL - Reads CSV, provides Map dictionary' from the Type drop-down, Provide Name (Important: Should be same as the property name provided in SoapUI), select the Data source (the CSV file with all the entries created)

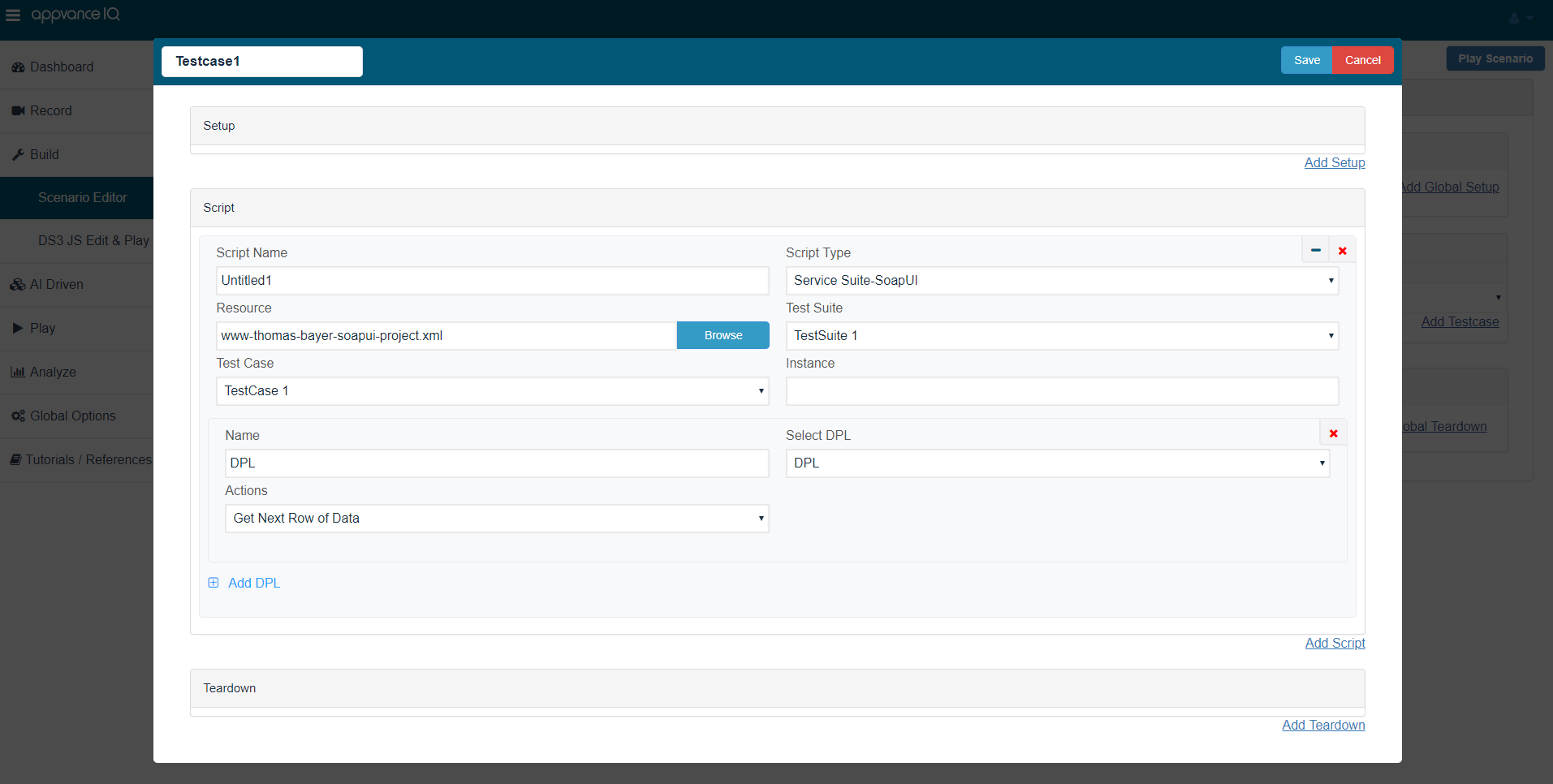

  14. Come back to the Test cases panel, click edit and click Add DPL, under Select DPL, select the DPL that we just added, provide the name (Important: Should be the same as the property name provided in SoapUI). Click Save

  15. Navigate to Options and make sure that Enable logging, Save logs on Failure are selected

  16. Click check box Custom Database Credentials (Database Logging) and make the following settings:

    Database Type: MySQL

    Driver: com.mysql.jdbc.Driver

    URL: jdbc:mysql://localhost:3306/utp?useSSL=false

    Default Schema: utp

    Username: utp

    Password: utp

  17. Click File ->Save to save the new scenario

  18. Click Play Scenario from the top navigation bar

  19. The controller window will open in a new tab which displays the tests running and will display the pass / fail status of the tests upon the test completion

  20. The left part shows the steps and the duration in milliseconds and the right side shows the test run status under the Output tab

  21. On The transactions tab, we can find the request/response and an error tab to drill down further

  22. Click the Click here link to get to the list of Reports that Appvance IQ supports
