RBAC setup to use Graph Service in Service Suite

RBAC (Role-Based Access Control) for applications will eventually replace application access policies (see below). Today, the public preview shows some ragged edges in terms of the integration between Exchange Online and Azure AD that Microsoft says they’ll fix before general availability. Even with some bumps to navigate, the new functionality is a welcome addition that extends tenant control over their data, which is always a good thing.

In order to use this protocol you need to do the following configurations in your azure account so the roles and permissions are set correctly.

Once you have done the below steps you should be able to use the service suite Graph Service oauth2 client to send/receive emails using RBAC with the normal client commands.

1. Open Windows PowerShell as an Administrator

2. Execute: connect-mggraph -scopes "Application.Read.All". If the exception "The term connect-mggraph' is not recognized as the name of a cmdlet" appears, execute the command

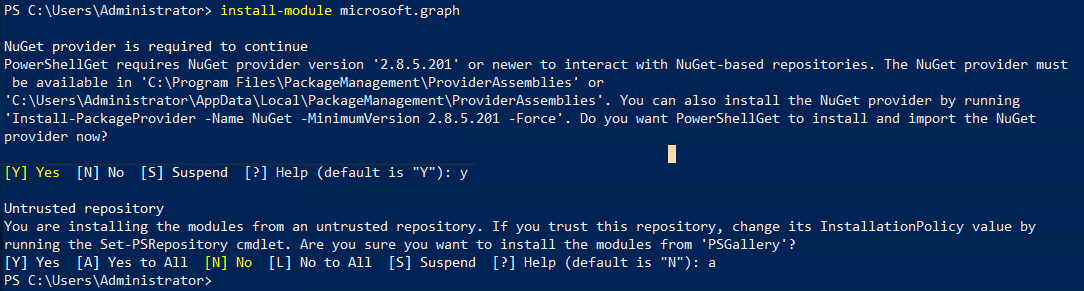

   install-module microsoft.graph




3. After Microsoft Graph is installed, execute again the command connect-mggraph -scopes "Application.Read.All"

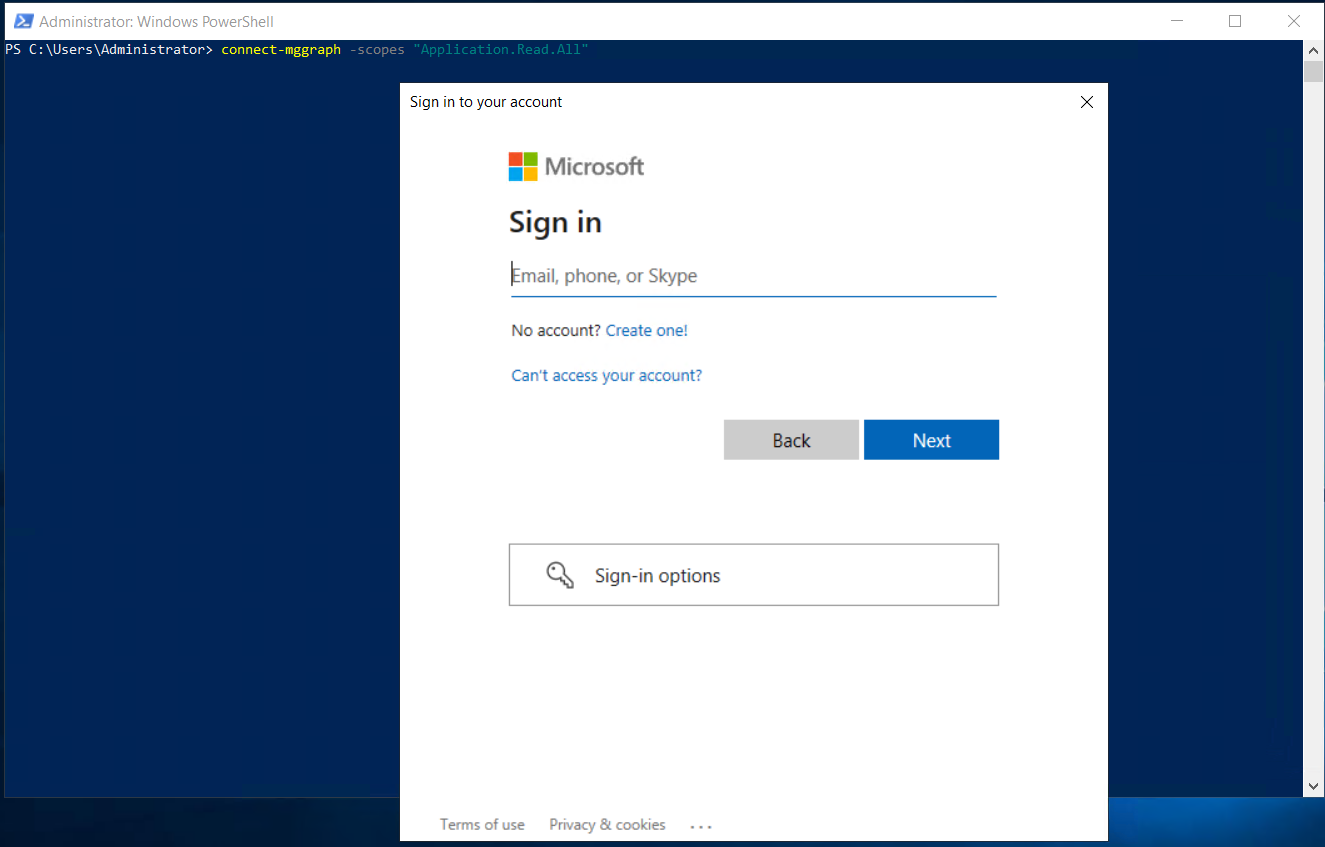

4. Sign in



5. After signing in, should see this:



6. Execute: $SP = Get-MgServicePrincipal -All

7. Execute: $ServicePrincipalId = $SP | Where-Object {$_.displayName -eq "{Application name}"} | Select-Object -ExpandProperty Id

8. Execute: $AppId = $SP | Where-Object {$_.displayName -eq "{Application name}"} | Select-Object -ExpandProperty AppId

9. Execute: Write-Host ("AppId is {0} and Service Principal Id is {1}" -f $AppId, $ServicePrincipalId)
   Output:



10. Execute: Install-Module -Name ExchangeOnlineManagement

11. Execute: Import-module ExchangeOnlineManagement

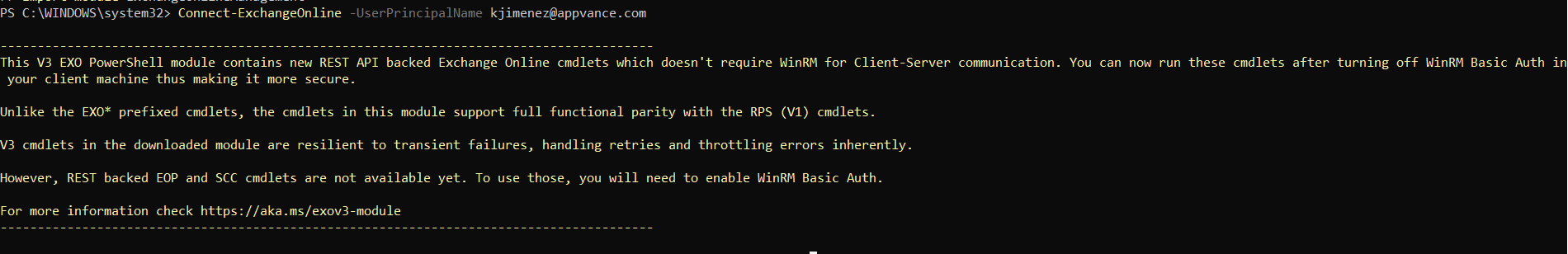

12. Execute: Connect-ExchangeOnline -UserPrincipalName {user email}
    Output:



13. Execute: New-ServicePrincipal -AppId $AppId -ServiceId $ServicePrincipalId -DisplayName '{Application name}'

14. Execute: New-ManagementScope -Name "Management emails" -RecipientRestrictionFilter "CustomAttribute1 -eq '{RolName}'"

15. Execute: Set-Mailbox -Identity {username} -CustomAttribute1 "{RolName}"

16. Execute: Get-EXOMailbox -Filter {CustomAttribute1 -eq "{RolName}"} | Format-Table DisplayName

17. Execute: New-ManagementRoleAssignment -App $AppId -Role "Application Mail.Mail.ReadWrite" -CustomResourceScope "Management emails"

18. Execute: New-ManagementRoleAssignment -App $AppId -Role "Application Mail.Send" -CustomResourceScope "Management emails"

Assing a role to a user

Execute: Set-Mailbox -Identity {username} -CustomAttribute1 "{RolName}"

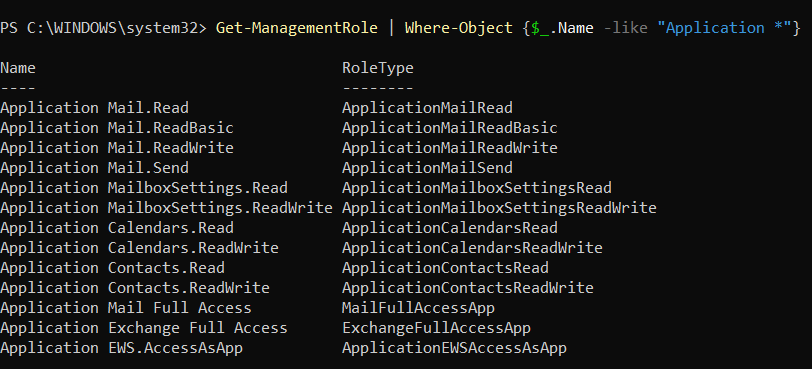

List available permissions

Execute: Get-ManagementRole | Where-Object {$_.Name -like "Application *"}

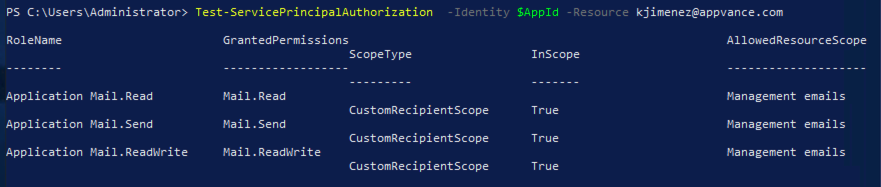

See permissions assigned to a user

Execute: Test-ServicePrincipalAuthorization -Identity $AppId -Resource {email}
