Validation and Store Test Suite - Designer

This feature is to validate the request and response of the Appvance Designer script and validate the responses of the Appvance Designer script by adding assertions.

The steps to be followed to add assertions in Appvance Designer is given below:

  1. Create an Appvance Designer script using Appvance Designer in IQ.

  2. Create a Functional test scenario and save it.

  3. Run the Functional test scenario.

  4. Navigate to Controller and go to the Validation suite tab and Add assertions.

  5. Refresh the scenario and check if the assertion added is reflected appropriately.

  6. Re-run the same scenario with added assertion and validate if assertions are processed.

Create an Appvance Designer script using Appvance Designer in IQ

We will use the "Apple website" to create a sample Appvance Designer Script.

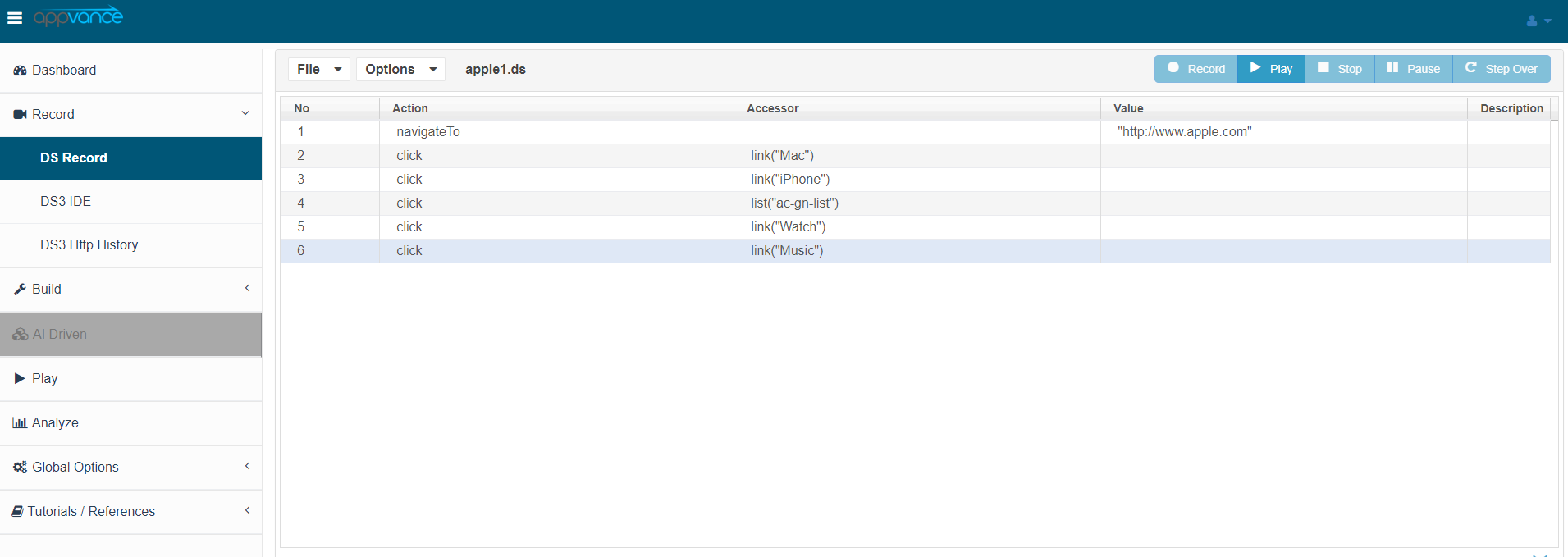

The Appvance Designer script with the recorded steps is shown below in the screenshot

Create a Functional test scenario and save it

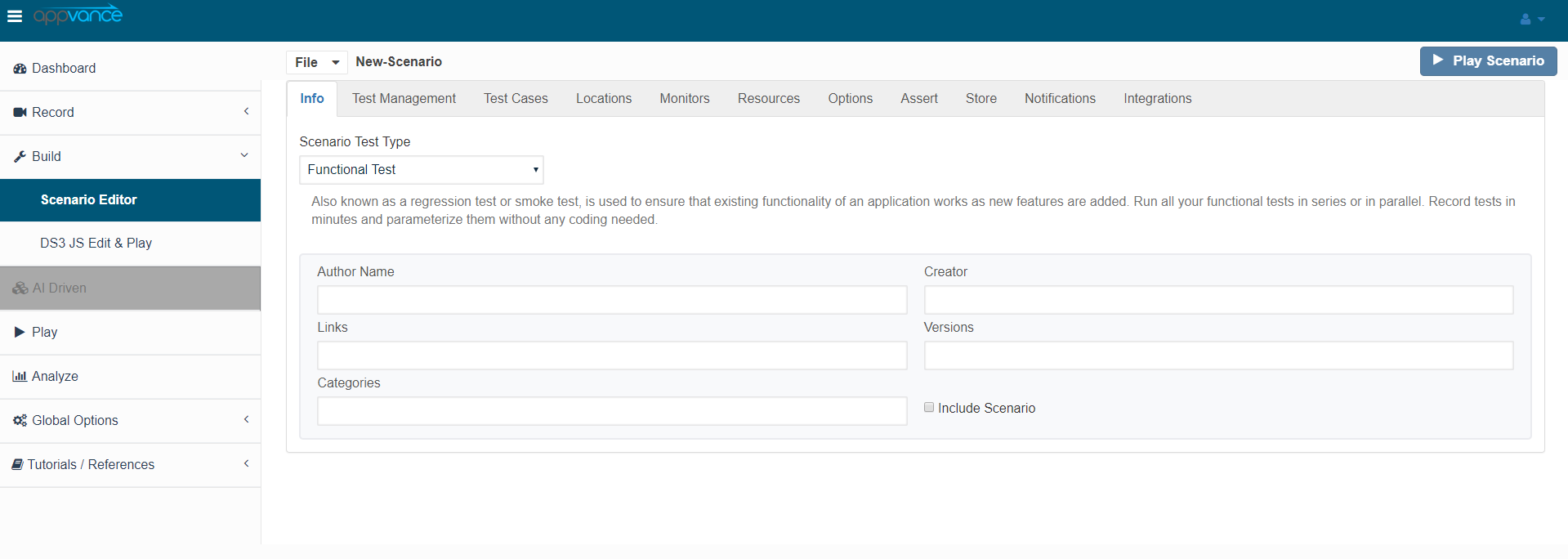

Create a functional test scenario using the Appvance Designer script created in the above step and save the scenario. The screenshot is given below.

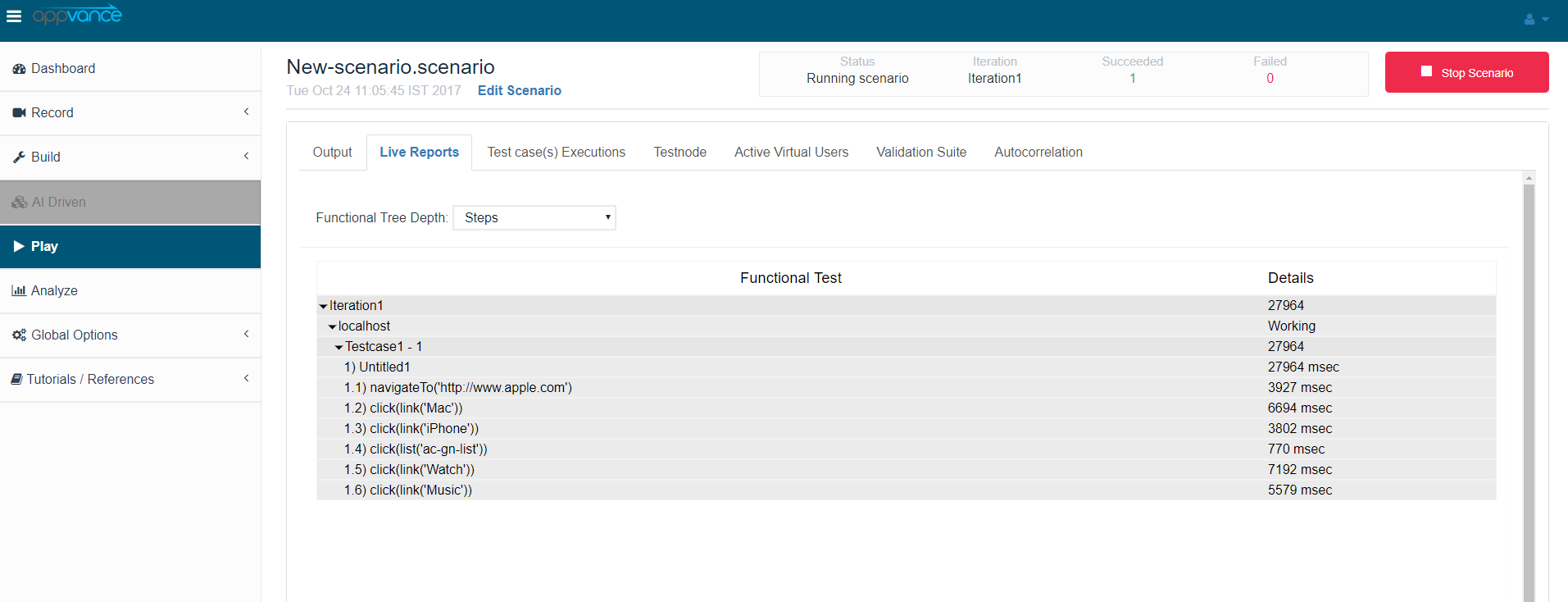

Run the Functional test scenario

Click the "Play Scenario" button and the scenario should run successfully (with at least a few steps).

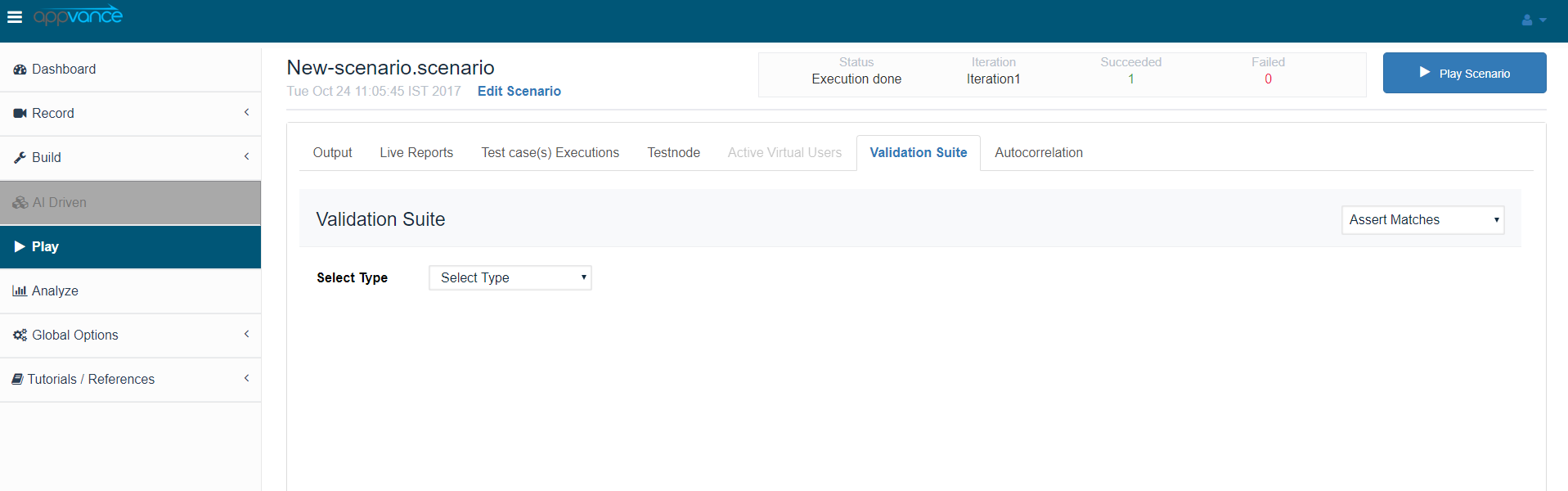

Navigate to Controller and go to Assert suite tab and Add assertions

Once the test is completed successfully. Click the Validation suite tab and from the drop-down select the assertion of our choice

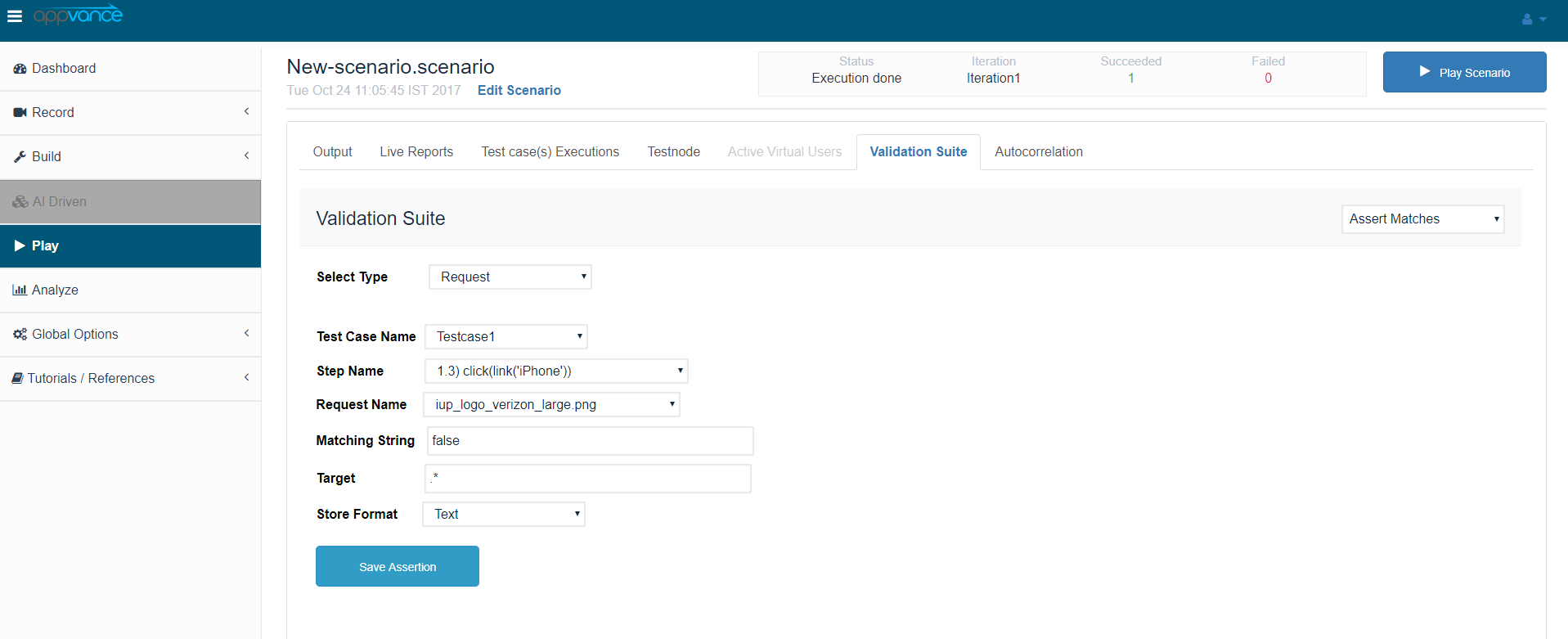

We will select the Assertion type as Assert Matches and add the assertion accordingly.

Where

  • The select type will allow the user to select from the Test case, Step and Request.

  • Test case Name is the name of the Test case that is provided in the Scenario builder.

  • Step Name is the name of the step under which we will add the assertions

  • Request name is the name of the request for which we are adding an assertion

  • The matching string is the string we will be looking for

  • Target is the area in which assertions will be checked, * can be used for everything, Any regular expression can be used.

There are 3 types are targets

  • JSON: Target is the path

  • XML: Target is the Xpath

  • Text: Target is Regex

Refresh the scenario and check if the assertion added is reflected appropriately

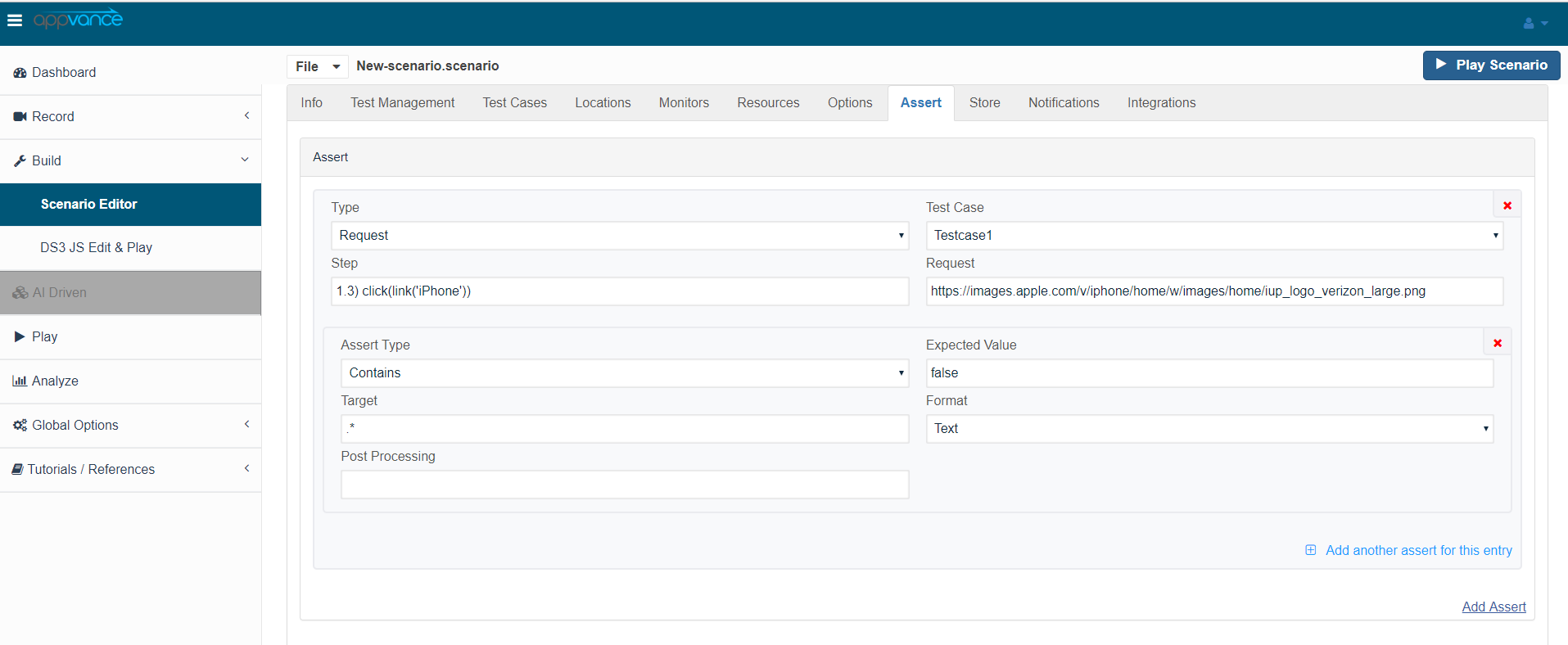

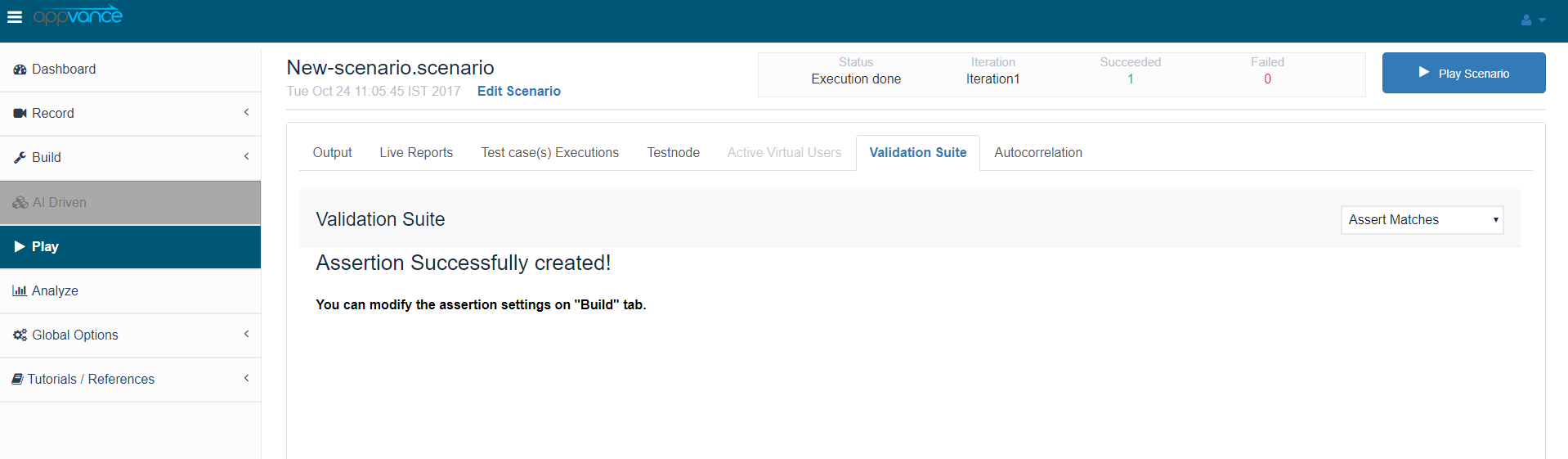

After we add the assertions in the test controller we can view the same in Scenario Builder (SB) by Clicking on Save assertion. Once the assertion is saved User needs to refresh the Scenario Builder page to see the changes. Users should navigate to the Assert suite tab of the Scenario Builder page. The screenshot of the below is shown below:

We will be saving the scenario and running it again and the test will fail since the request is set to false

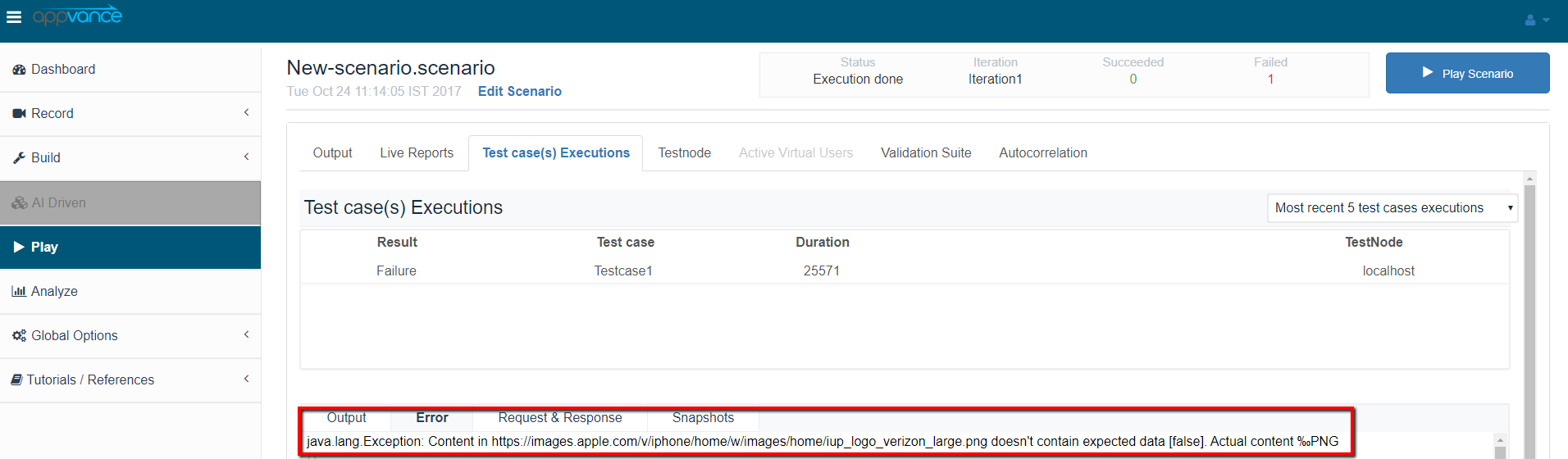

The output from the controller is given below where it is failing.

Re-run the same scenario with added assertion and validate if assertions are processed

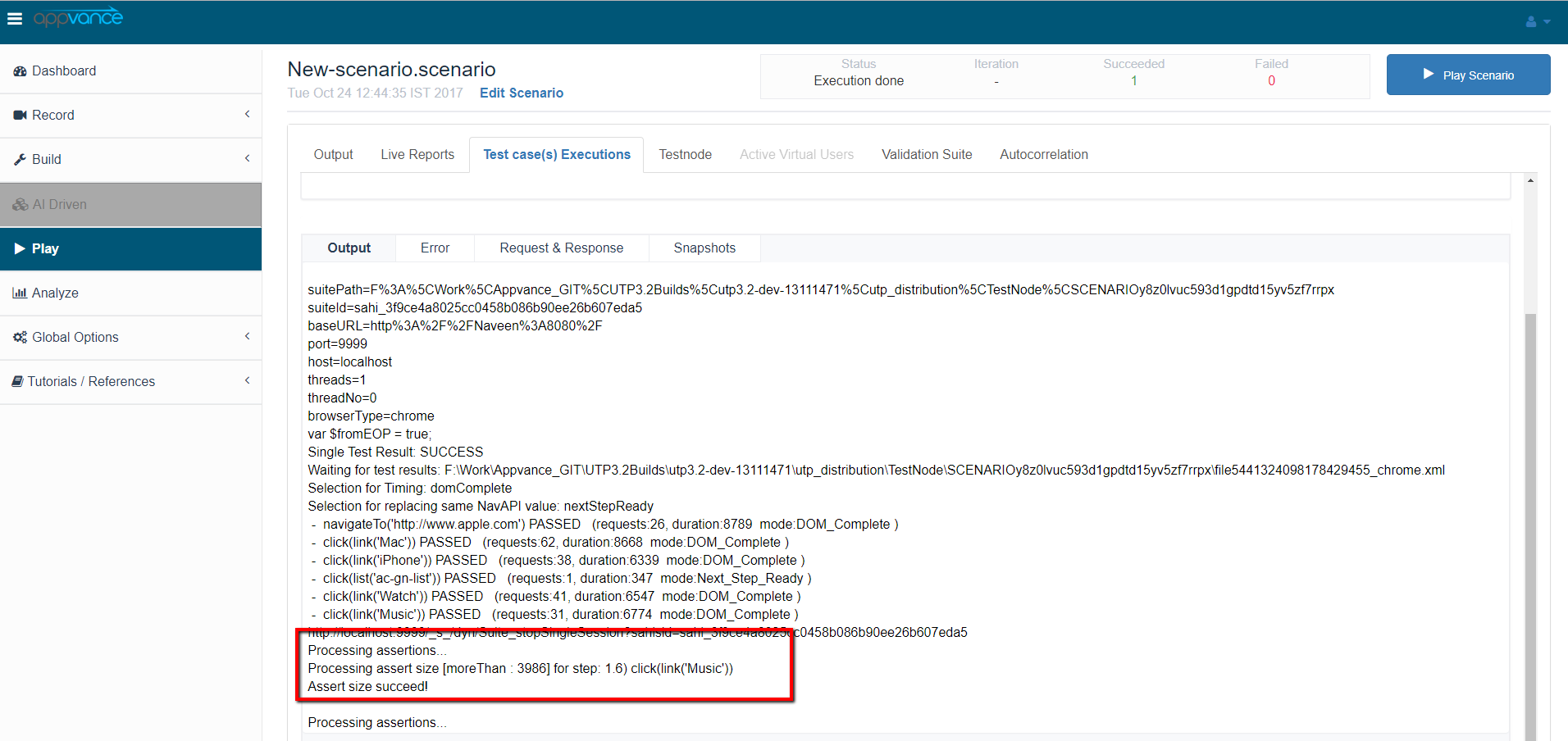

Now the user changes the assertions and makes sure the valid assertion is passed and re-runs the same scenario and the test should pass successfully since the valid assertion is passed. The screenshot of the controller with valid assertion processed as shown below

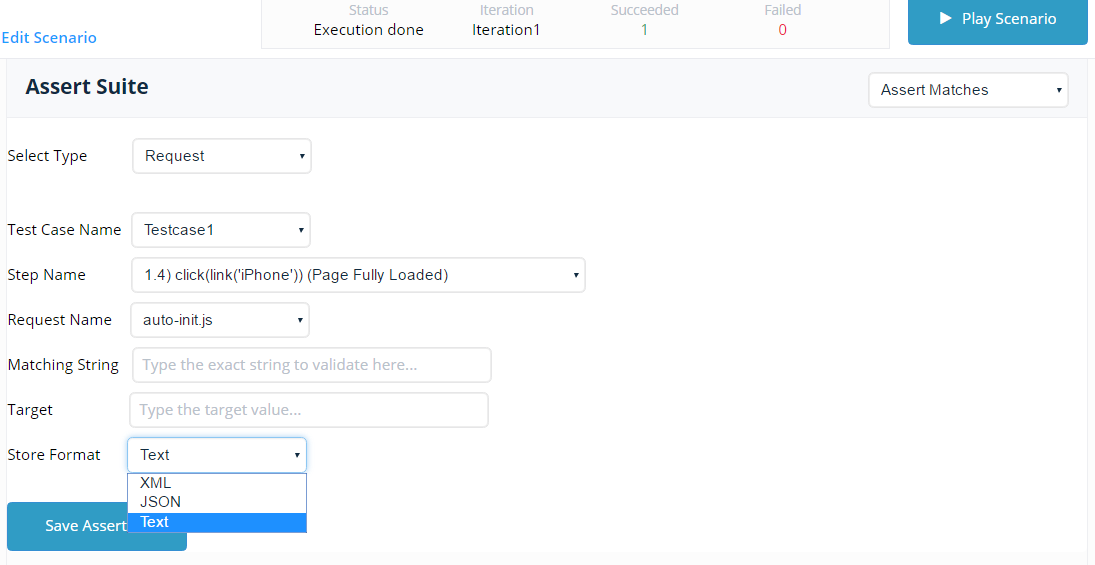

Different Formats and their targets:

We have three different formats

  • XML

  • JSON

  • TEXT

For Text, we need to use regular expressions as the target

For XML, we need to use xpath as a target

For JSON, we can use JSON as the target expression

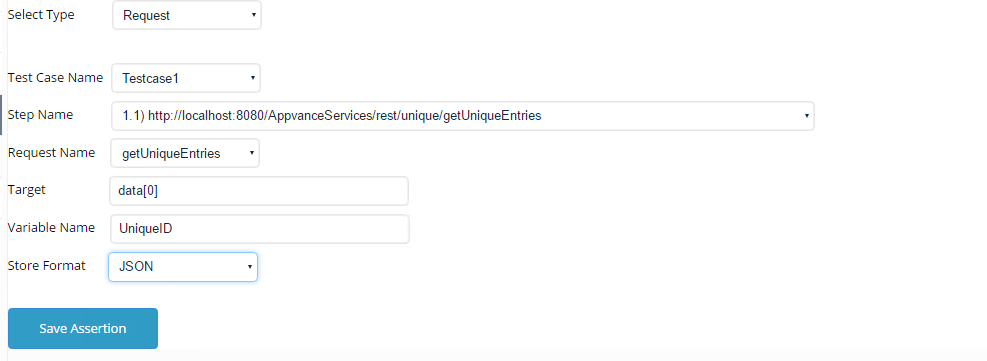

The below example shows how to deal with JSON responses and those assertions can be added to APC

We can use the indexes as shown below:

Make sure the Format is JSON for this particular test.

Similarly, we can do other assertions like:

Asset Exist

Assert Size

Assert Duration

Assert Checksum

Assert Response Codes
