Traffic - Running a Complete Scenario

Using Firefox for this example:

Firefox Browser.

1. As described in the Proxy Settings Chapter, please configure the proxy settings to listen to port 9095 and save the settings.

2. Click Traffic under Record.

3. ProvideSet HTTPthe Portproxy port to be 9095 (or any other.other available port).

4. Under Record - Provide a mark Step value "Navigate to" and click Record.

5. Go to Firefox browser and enter the app under test, in my example "http://localhost:8080/AjaxApp/examples/desktop/desktop.html" was used for recording.

6. Click Refresh to see the recorded traffic.

7. Users can come back to the Record section and change the mark step name to something else like "Add Company and Save"

8. All the actions that were done to add the company, providing the values and savings will be stored under the "Add Company and Save" step.

9. Click Stop and Click Save to save the traffic requests saved.

10. Go to Scenario Editor.

11. Click File > New

12. Info tab - Select Performance Test.

13. Go to Test Management and Select Executions Per user or any desired completion criteria for the scenario run.

14. Click Test case panel.

15. Click 'Add a new test case execution'

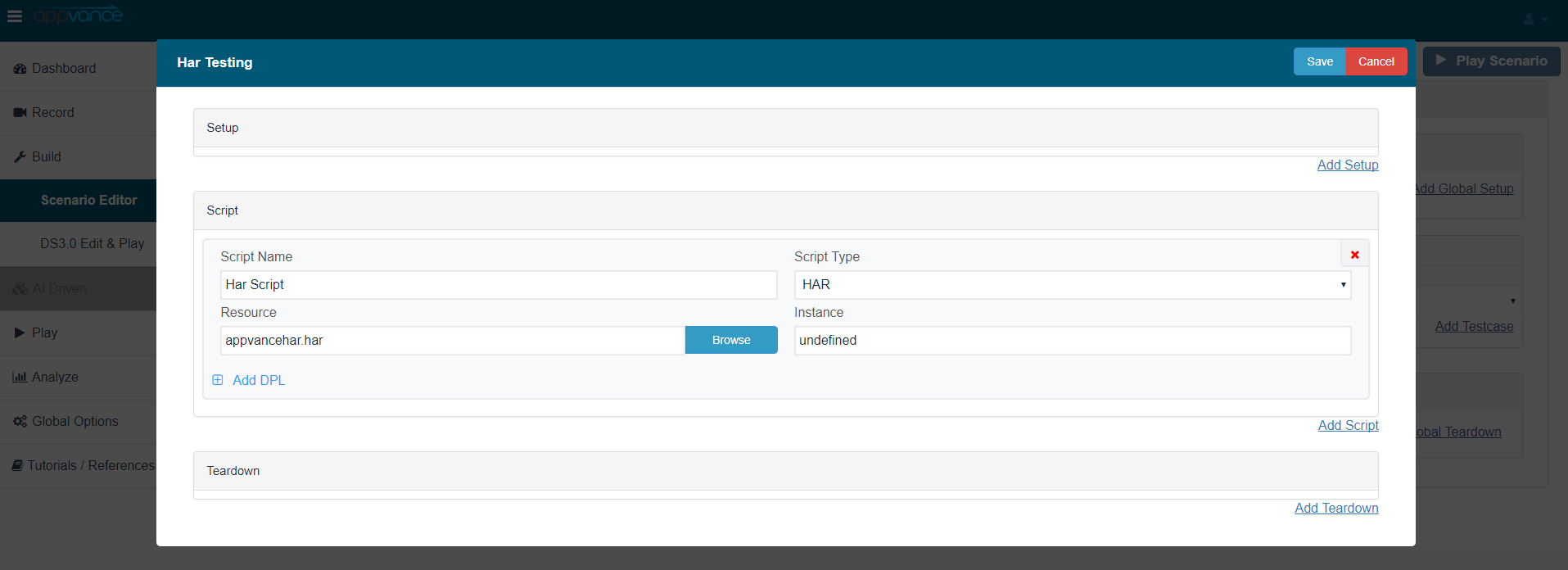

16. Select HAR as the script type from the drop-down and select the resource as the .har file that was saved from the HTTP proxy



17. Click Save

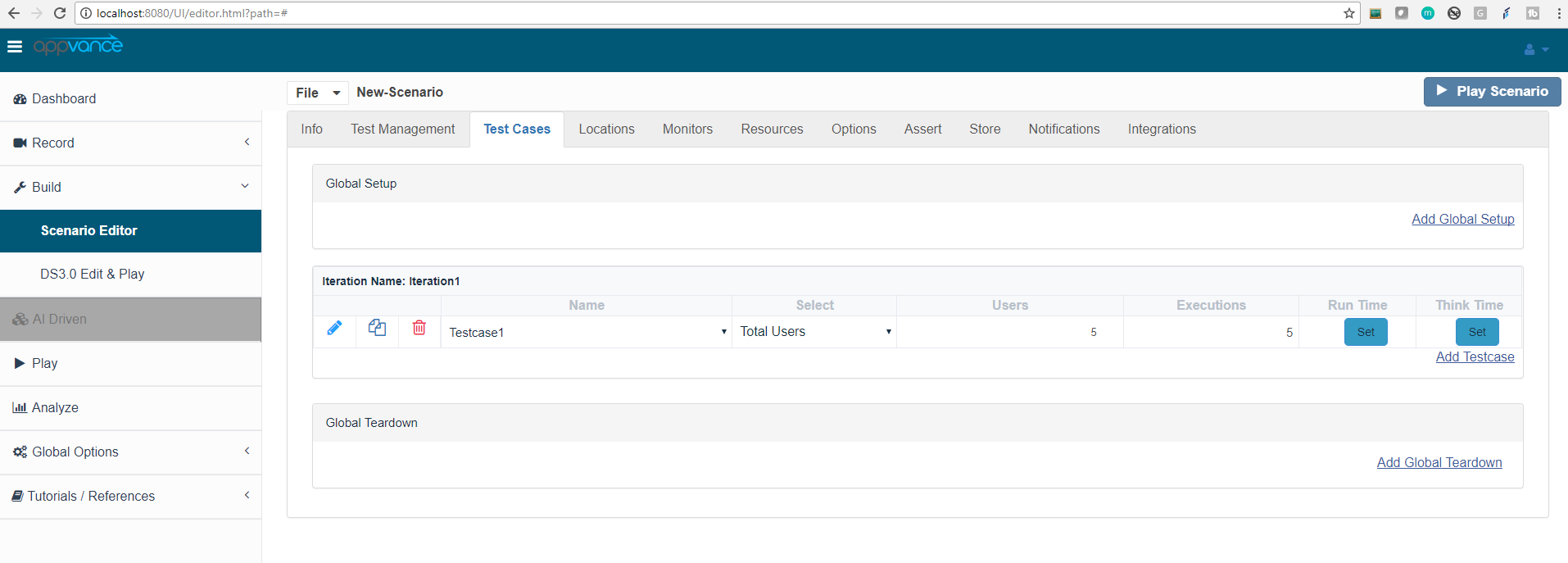

18. Provide Users and Executions as desired, I have provided 5 users and 5 executions in this example



19. Go to Options and select the desired logs and also save the Database settings

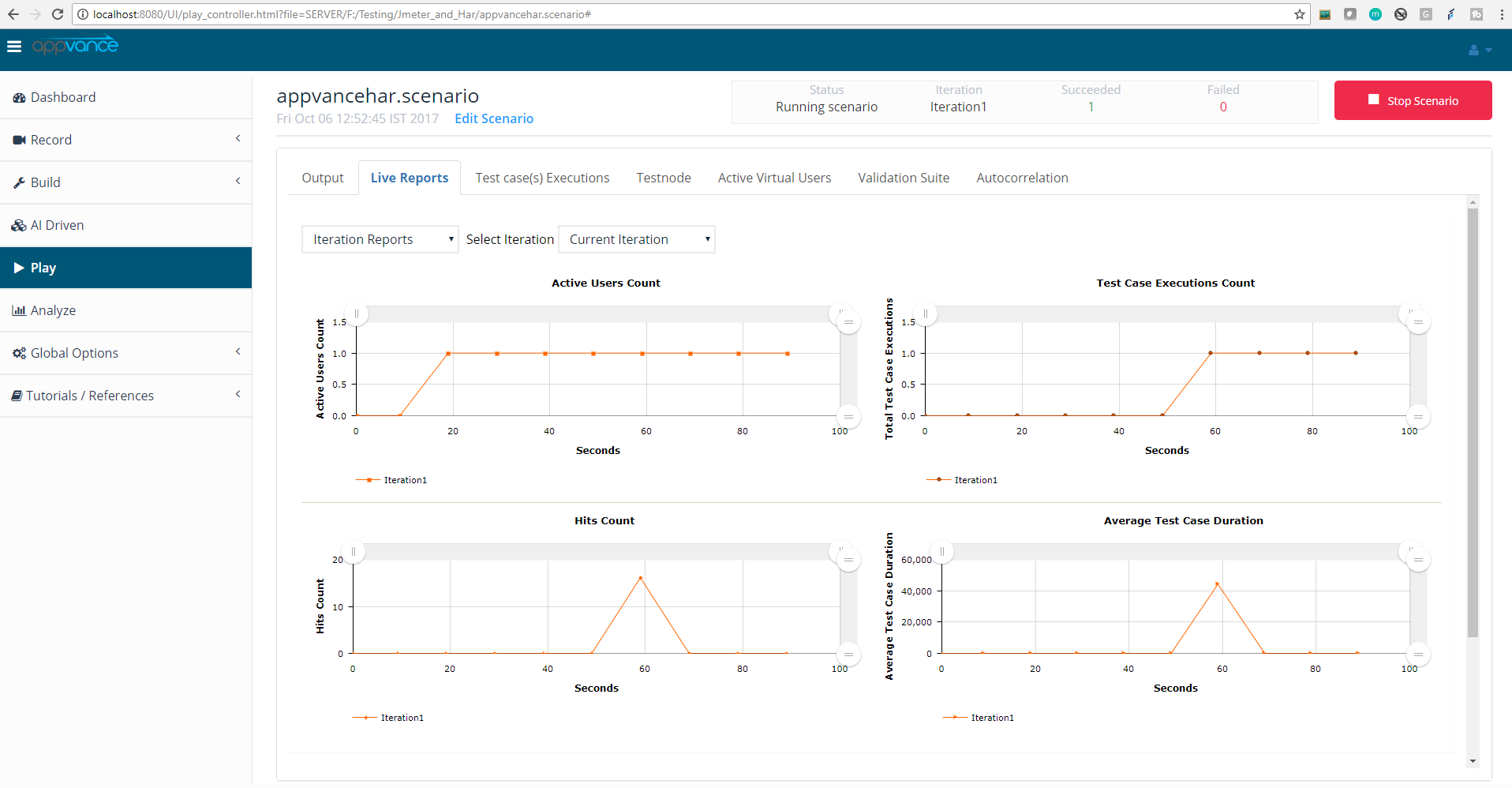

20. Save the Scenario and click the Play Scenario button

21. As the recorded script is a HAR script, the script playback will be at the protocol level where the user shall not see any browsers popping up

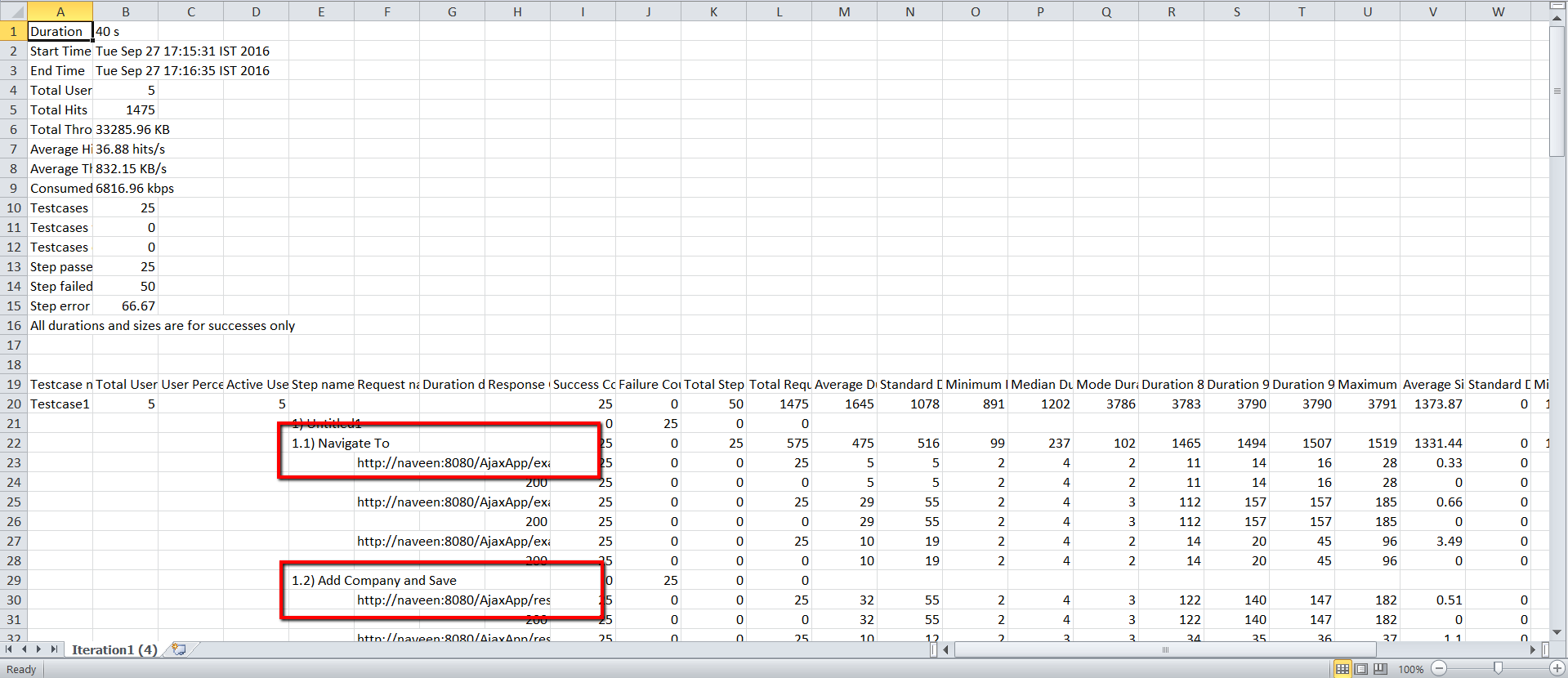

22. Users can go to the output tab from the above image and click “click here” to go to the reports page and download the iteration summary report which displays the steps that were marked along with response times and many other results for the test run



Similarly, users can choose any browser or any device to record a script and run it in AIQ. It's that simple!
