How to upgrade Appvance IQ Controller & TestNodes

Describes how to use Lab Management to upgrade an Appvance IQ Controller and its TestNodes.

If upgrading from 4.0.x to 4.1+, do not use Lab Management as described below. Instead please see href="https://docs.appvance.net/Content/AIQ/Getting_Started/Manual_Upgrade_Steps.htm"Manual Upgrade Steps

Please complete all sections:

Linux Controllers

DO NOT use the Lab Management upgrade method to upgrade a Linux AIQ Controller which uses the /etc/systemd/system service to start AIQ at startup.

Lab Management only supports Linux upgrades where the /etc/rc.local startup script is used.

See href="https://docs.appvance.net/Content/AIQ/Getting_Started/Manual_Upgrade_Steps.htm"Manual Upgrade Steps

The following steps assume you have your upgraded Appvance IQ zip URL and all machines to upgrade have http access to the link.

Create a Grid Configuration File

First time using Lab Management? Follow these steps to create a Grid Config file for your Controller, and a separate Grid Config file with a list of TestNodes

A configuration file for your AIQ Controller, as well as a separate configuration file for your list of TestNodes is required

Browse to Appvance IQ and login using an admin-level account

Click Global Options and select Cloud Config

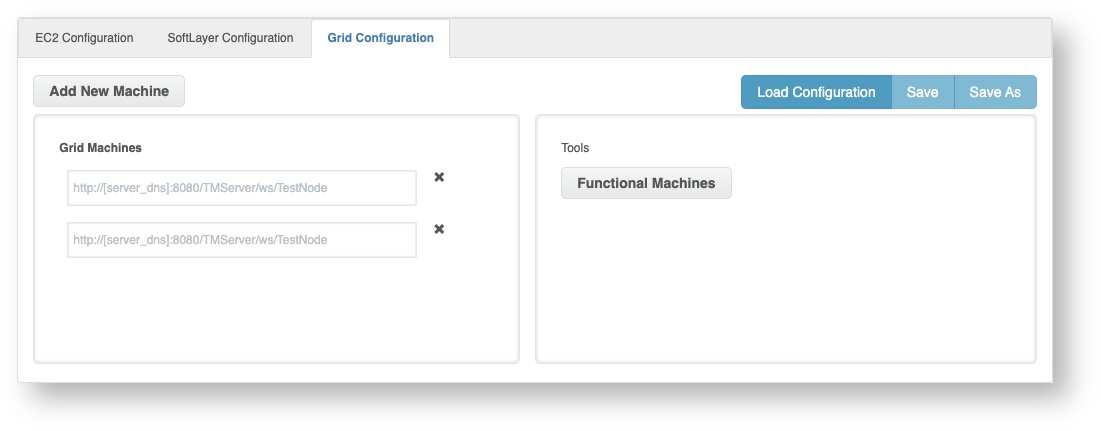

Select the Grid Configuration tab

Controller

Enter http://localhost:8080/TMServer/ws/Testnode in the Grid Machines box and press Enter

Click Save, and save the Controller Grid Configuration file

TestNode

Assuming you just created the Controller configuration file, click the Refresh button on your browser to clear the form, and select Grid Configuration again

Enter a new or existing TestNode machine URL in the Grid Machines box using the following format

http://< test-node-dns>:8080/TMServer/ws/Testnode

Press Enter

To add additional machines, click Add Machine and enter subsequent TestNodes in the Grid Machines list using the format described above

Click Save, and save the TestNode Grid Configuration file

Configure Lab Management

Use the Grid Configuration files (created above to upgrade a Controller or a list of TestNodes

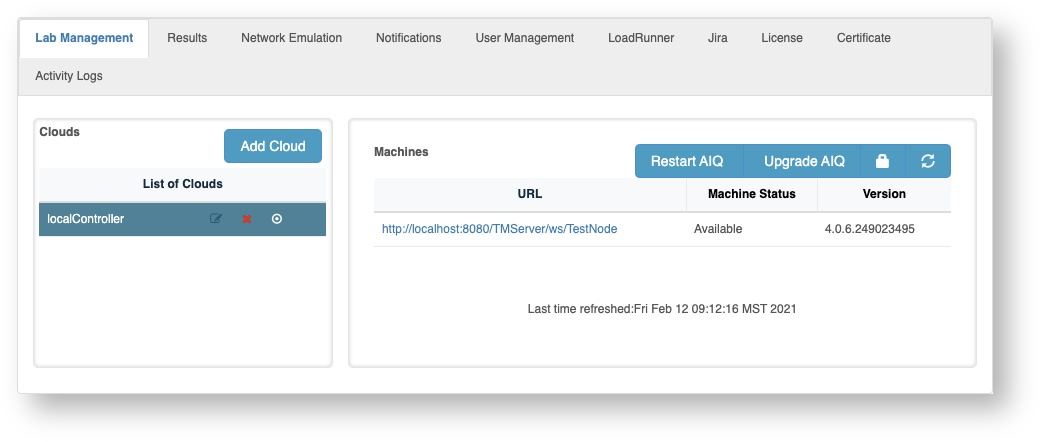

Click Global Options, Admin Options
The Lab Management tab appears

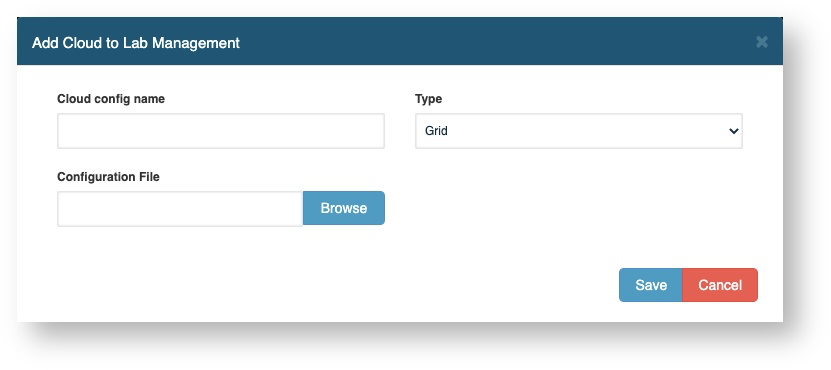

Click Add Cloud

Enter a name in the Cloud config name box

Select Grid in the Type box

For each configuration file created (above):

Click Browse, select the previously created grid configuration file

Click Save. The entry appears in the Clouds list

When you select a Cloud (left), all systems in the cloud file and their availability appear in the Machines list (right)

Upgrade using Lab Management

Use a Grid Configuration file to upgrade a Controller list of TestNodes

Click Global Options, Admin Options
The Lab Management tab appears

Select a cloud location to upgrade in List of Clouds

Tip It's often recommended to upgrade your Controller before upgrading TestNodes

Confirm Machine Status displays Available and a valid Version displays for each listed URL

If your Machine Status displays Invalid Login, click the lock icon and enter your Appvance credentials when prompted.

If your Machine Status displays Unreachable, confirm Appvance is running on the designation system and that the destination system is reachable from the Appvance controller you are currently using to perform the update.

If your Machine Status displays Available, however the version is Unreachable or Unknown, please contact support@appvance.ai

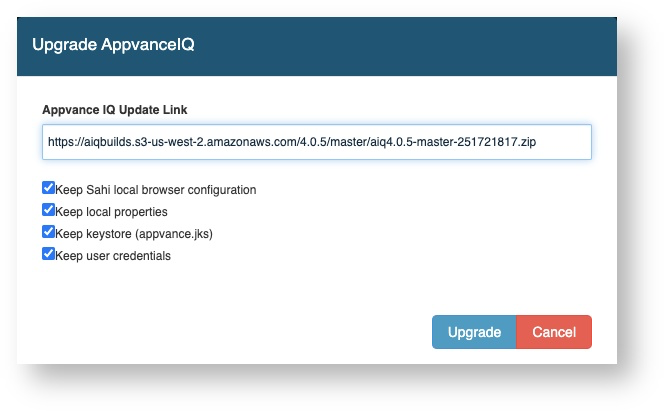

Click Upgrade AIQ

Click Browse and enter in the new Appvance IQ build zip file URL

Note Each of the above machines must have access to the internet to download the distribution zip file

Click Upgrade, and when the confirmation window appears, click OK

Controller Upgrade

If upgrading your Controller, you will lose connectivity as the Appvance IQ upgrade completes. Try refreshing your browser after 3 - 5 minutes, and repeat until Appvance IQ once again becomes available.

About Upgrade

The upgrade lasts several minutes and varies based on how long each TestNode requires to download and unzip the Appvance .zip file (~2.8GB), as well as a few additional minutes for the actual installation.

Click the refresh button occasionally and watch for the updated version number. During the installation process, the Appvance IQ services on each machine become unavailable, as the services are down when applying the upgrade.

IMPORTANT: Mac OS X Servers

Mac OSX Servers

After completing an upgrade where a Controller or a TestNode uses Mac OS X, folder permission updates are required, as well as restarting Appvance IQ

The following code block assumes Appvance IQ (AIQ) is installed in $HOME/AIQ/aiq_distribution

Update AIQ Permission Post Lab Management Upgrade

cd $HOME/AIQ/
killall java
chmod -R 777 aiq_distribution
cd aiq_distribution/
./Appvance.sh
