CICD- AntTags

Appvance IQ - CICD - All about Ant tags

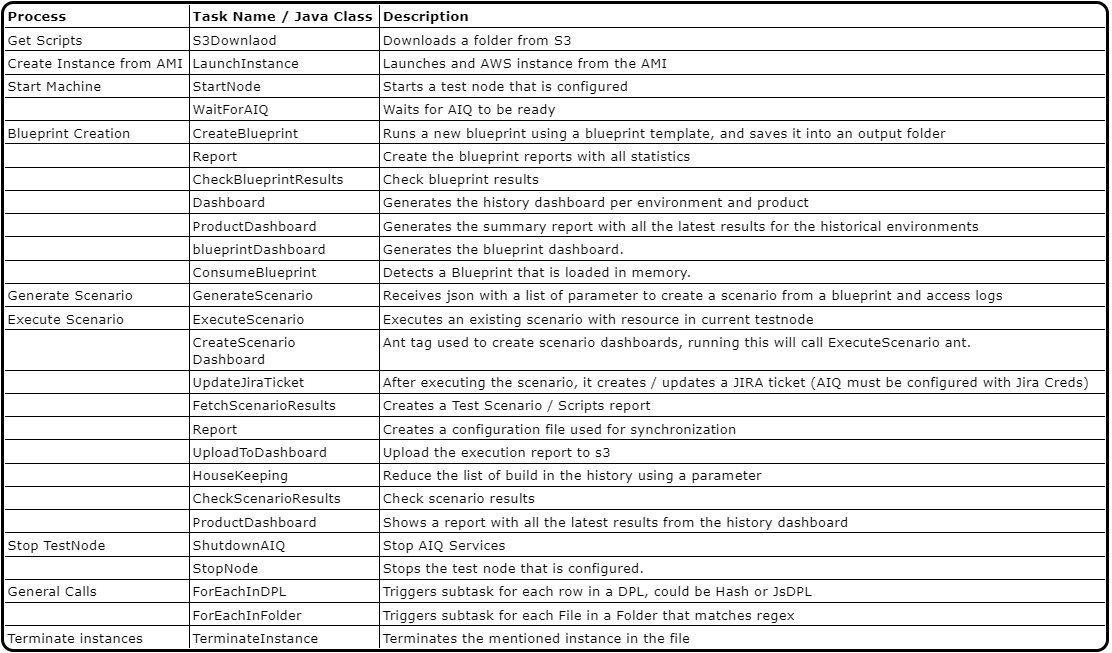

Below is the list of all Ant tags/Java Class that is defined in build.xml file and their descriptions

Below are Ant Tasks and their descriptions and examples

  • S3Downlaod

  • StartNode

  • WaitForAIQ

  • CreateBlueprint

  • Report (AISG)

  • CheckBlueprintResults

  • Dashboard (AISG)

  • GenerateScenario

  • ExecuteScenario

  • UpdateJiraTicket

  • FetchScenarioResults

  • Report (Scenario)

  • UploadToDashboard

  • HouseKeeping

  • CheckScenarioResults

  • ProductDashboard

  • ShutdownAIQ

  • StopNode

  • AddAIQUser

  • ForEachInDPL

  • UpdateBlueprintTemplate

  • ForEachInFolder

  • ExtractAutovalidations

  • UpdateCSVValidations

  • DownloadRepository

  • GitReporter

  • History Manager

  • ProjectManager

  • ProductManager

  • UploadRepository

  • Git Support

  • ConsumeBlueprint

  • FunctionalExecuter

  • FunctionalReport

  • Dashboard Git Support

  • Terminate Instance

  • Launch Instance

  • UploadReportToS3

S3Downlaod

Description

Downloads a folder from S3. Requires S3 credentials and an output file.

Input Parm

credentials: This points to the credentials file. It is a property file similar to

AWS_ACCESS_KEY_ID=AKIA........

AWS_SECRET_ACCESS_KEY=G8w...............

REGION:us-west-2.ec2.amazonaws.com

bucketBase: It is the AWS Bucket where the folder is located

localFolder: The folder where the file will be downloaded

remoteFolder: Remove the folder inside AWS Bucket

StartNode

Description

Starts an AIQ Machine using the information in aiqCreds. Creates machine id in the generatedConfig file.

Input params

aiqCreds: Path of the configuration relative to the project (build.xml). Should have next format

{

"controller": {

"instances": ["i-07cb37f006XXXX"],

"ec2Creds": "ec2.creds",

"timeOut": 60,

"username": "AIQUserName",

"password": "AIQPassword",

"workFolder": "."

}

}

ec2Creds is a creds file to connect to EC2, the format is

AWS_ACCESS_KEY_ID=AKIA....

AWS_SECRET_ACCESS_KEY=W96Axh4UqDl.....

REGION:us-west-2.ec2.amazonaws.com

  • generatedConfig Path of the generated configuration file relative to the project (build.xml). Contains EC2 AMI information. Should have next format

{
"instanceId":"i-07cb37f006083a225",
"url":"http://ec2machine1:8080/TMServer/ws/TestNode"
}

WaitForAIQ

Description

Waits until AIQ is ready

Input Params

  • timeout: The timeout for this ant task in seconds. If AIQ is not ready after these seconds the task will fail. IF the parameter is not set the default value is 10 minutes

  • aiqCreds: The AIQ credentials are in JSON format, the same format for running a scenario. The URL is optional. if not set. The Task will use the URL from consoleDetails

{
"controller":{
"url":"http://localhost:8080",
"username":"",
"password":""
}
}

  • consoleDetails: File which contains URL if it is not set in aiqCreds

{
"url":"http://localhost:8080"
}

Output

AIQ should be ready and available otherwise the ant task will fail

CreateBlueprint

Description: Creates a AISG.

Inputs

  • projectName: "LeadGenius".

  • template: "<Project-Folder>/blueprintTemplateFile.abpt".

  • aiqCreds: "<Project-Folder>/localhost.json".

{
"controller":{
"url":"http://[ec2.machine.dns]:8080",
"username":"appvance",
"password":"appvance",
"workFolder":"/Users/[UserName]/workFolder" <--- for mac users
"workFolder":"c:/Users/administrator/workFolder" <--- for windows users
}
}

  • outputFolder: "<Project-Output-Folder>/Output"

  • forceNewScan: "true" // is defined as true

  • requestMaxDuration: "2000"

  • reportStatusCode: "300" for page updates

  • customer: CustomerSample.com

  • buildVersion: 0001

Ant Task Example

<taskdef name="createBlueprint" classname="com.appvance.ci.CreateBlueprint">

<classpath refid="RestClientLibPath" />

</taskdef>

<createBlueprint template="${template}" aiqCreds="${aiqCreds}" buildVersion="${buildVersion}" outputFolder="${blueprintResults}"

projectName="${projectName}" requestMaxDuration="4000" consoleDetails="${consoleDetails}" reportStatusCode="400" customer="${customer}" forceNewScan="true" />

Output

AISG is created inside outputFolder parameter

Report (AISG)

Description

Creates a Dashboard report based on Junit results. It can handle integrations in the Junit results

Input Params

  • fileConfig="generateRegressionScenario.json"

  • aiqCreds="controller01.json"

  • consoleDetails="consoleDetails.json"

  • logsRemoteFolder="E:/Regression/Logs"

  • projectName="moduleName"

  • outputFolder="Output"

Output

Generates a Scenario and its scripts inside the Output folder

Ant Task Example

<taskdef name="uploadReportToS3" classname="com.appvance.AISG.UploadReportToS3">

<classpath refid="RestClientLibPath" />

</taskdef>

<uploadReportToS3 buildVersion="${buildVersion}" credentials="${awsCredentials}" bucketBase="${Bucket}" executionType="blueprints"

reportFolder="${blueprintResults}" environment="${environment}" product="${product}" />

CheckBlueprintResults

Description

Checks AISG and fail if results are worse than expected

Input Params

  • maxFailingRequests : max allowed number of requests with failing status codes. If not set, it will not be tested

  • maxValidationFailures : max allowed number of AISG validations failures. If not set, it will not be tested

  • minValidationRatio : minimum allowed percentage integer (1-100) that shows the ratio of succeeded validations. If not set, it will not be tested

Output

Fail if results are worse than expected

Ant Task Example

<taskdef name="checkBPResults" classname="com.appvance.AISG.CheckBlueprintResults">

<classpath refid="RestClientLibPath" />

</taskdef>

<checkBPResults maxFailingRequests="${maxFailingRequests}" maxValidationFailures="${maxValidationFailures}" minValidationRatio="${minValidationRatio}" reportFolder="${reports}" />

Dashboard (AISG)

Description

Creates the history for the current branch and product using the AISG history.

Input params

  • credentials="${awsCredentials}" s3 credentials

  • customer="${customer}" customer name for description

  • bucketBase="${Bucket}" s3 source to save data

  • environment="${environment}" parameter used for classifying content

  • executionType="blueprints" helps create an html with two tabs (for scenarios and for AISG content only)

  • product="${product}" parameter used for classifying content

Output

Creates the AISG HTML for the history dashboard and uploads these all synchronized files to s3.

Ant Task Example

The first scenario saves the initial time and the second scenario is set to false to avoid overwriting it.

<taskdef name="dashboard" classname="com.appvance.AISG.BlueprintDashboard">

<classpath refid="RestClientLibPath" />

</taskdef>

<dashboard credentials="${awsCredentials}" customer="${customer}" bucketBase="${Bucket}" environment="${environment}" executionType="blueprints" product="${product}" />

GenerateScenario

Description

Generates a regression scenario

Input Params

  • fileConfig="generateRegressionScenario.json"

  • aiqCreds="controller01.json"

  • consoleDetails="consoleDetails.json"

  • logsRemoteFolder="E:/Regression/Logs"

  • projectName="moduleName"

  • outputFolder="Output"

Output

Generates a Scenario and its scripts inside the Output folder

Ant Task Example

<taskdef name="genScenario" classname="com.appvance.ci.GenerateScenario">

<classpath refid="RestClientLibPath" />

</taskdef>

<genScenario fileConfig="${fileConfig}" aiqCreds="${aiqCreds}" consoleDetails="${consoleDetails}" logsRemoteFolder="${logsRemoteFolder}" projectName="${projectName}" outputFolder="${outputFolder}" />

ExecuteScenario

Description

Executes a Scenario and, if saveIntitialTime is not true, timing information will be saved in results.properties file in the resultsFolder.

Input params

  • aiqCreds: Path of the configuration relative to the project (build.xml). Should have the next format.

{

"controller": {

"instances": ["i-07cb37f006083a225"],

"ec2Creds": "ec2.creds",

"timeOut": 60,

"username": "appvance",

"password": "appvance",

"workFolder": "."

}

}

  • dir: Path to the scenario folder, current scenario folder value is "scenario"

  • scenario: Name of the scenario to execute, example "LeadGenius_31_34_TestEnv.scenario"

  • resultsFolder: The place where results.properties are saved. It contains useful information to create reports and dashboards. By default, its value is "results".

  • saveInitialTime: Indicates the results.properties file should be created in the result folder directory. By default it is true.

Output

The scenario should be completely executed and, if saveIntitialTime is not true, timing information will be saved in results.properties file in the resultsFolder.

Ant Task Example

The first scenario saves the initial time and the second scenario is set to false to avoid overwriting it.

<taskdef name="executeScenario" classname="com.appvance.ci.ExecuteScenario">

<classpath refid="RestClientLibPath" />

</taskdef>

<executeScenario aiqCreds="controller01.json" dir="${dir}" scenario="Scenarioname.scenario" consoleDetails="${consoleDetails}" resultsFolder="${scenarioResults}" />

UpdateJiraTicket

Description

Logs into Jira, and updates the ticket status, adding a comment based on the execution result file.

Input:

  • jiraCreds: it is a JSON file with the next format:

{

"url": "httpS://.....",

"username": "userQA",

"password": "XXXXXXXX",

"destinationStatus" : {

"success": "done",

"failure": "in progress"

}

}

  • ticketId: this is the identifier for the ticket to be updated.

  • executionResult: the JSON file.

  • updateStatus:

  • maxFailures: maximum number of failures before considering the test fails.

  • minSuccessPercentage: minimum percentage before considering the test fails.

Output:

These ant tags will log in to Jira, and it will update the ticket status by adding a comment based on the execution result file.

FetchScenarioResults

Description

Save scenario results in the results folder. It will update the results.properties file inside the results folder with useful timing properties for report and dashboard creation.

Inputs

  • aiqCreds: Path of the configuration relative to the project (build.xml). Should have the next format.

{

"controller": {

"instances": ["i-07cb37f006083a225"],

"ec2Creds": "ec2.creds",

"timeOut": 60,

"username": "appvance",

"password": "appvance",

"workFolder": "."

}

}

  • scenario: name of scenario to execute

  • consoleDetails:

  • resultsFolder: name of the folder to save result files. It should contain the results.properties file which contains useful timing properties for report and dashboard creation.

  • stopOnFailure: boolean, this enables the process to continue or stop when fails.

Output

Save scenario results into the results folder parameter. The report.properties file will be updated with useful timing properties for report and dashboard creation.

Ant Task Example

<taskdef name="fetchScenarioResults" classname="com.appvance.ci.FetchScenarioResults" >

<classpath refid="RestClientLibPath"/>

</taskdef>

<fetchScenarioResults aiqCreds="creds.json" scenario="BasicScenario.scenario" consoleDetails ="params.json" stopOnFailure="false"/>

Report (Scenario)

Description

Creates a Dashboard report based on Junit results. It can handle integrations in the Junit results

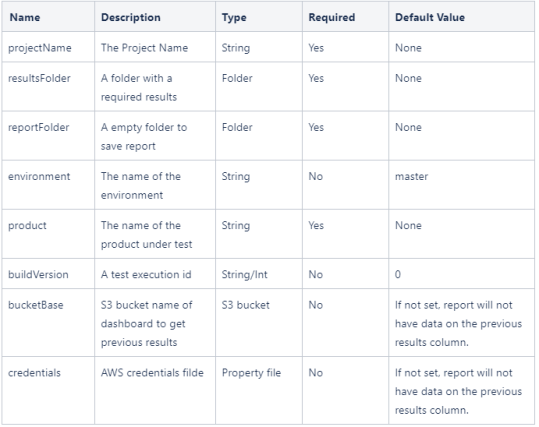

Input Params

  • projectName="moduleName"

  • resultsFolder="${scenarioResults}"

  • reportFolder="${scenarioReports}"

  • executionType="scenarios"

  • environment="${environment}"

  • consoleDetails="consoleDetails.json"

  • product="${product}"

  • buildVersion="${buildVersion}"

  • bucketBase="${Bucket}"

  • aiqCreds="controller01.json"

  • credentials="${awsCredentials}"

Output

Generates a Scenario and its scripts inside the Output folder

Ant Task Example

<taskdef name="Report" classname="com.appvance.ci.Report">

<classpath refid="RestClientLibPath" />

</taskdef>

<Report projectName="${projectName}" resultsFolder="${scenarioResults}" reportFolder="${scenarioReports}" executionType="scenarios"

environment="${environment}" consoleDetails="${consoleDetails}" product="${product}" buildVersion="${buildVersion}" bucketBase="${Bucket}" aiqCreds="${aiqCreds}"credentials="${creds.json}" />

UploadToDashboard

Description

This ant task uploads files.

Input Params

  • bucketBase="${Bucket}"

  • product="${product}"

  • projectName="${projectName}"

  • environment="${environment}"

  • executionType="scenarios"

  • credentials="${awsCredentials}"

  • buildVersion="${buildVersion}"

  • reportFolder="${scenarioReports}"

  • consoleDetails="${consoleDetails}"

  • aiqCreds="${aiqCreds}"

Output

No output, this ant task only uploads files

Ant Task Example

<taskdef name="uploadToDashboard" classname="com.appvance.ci.UploadToDashboard">

<classpath refid="RestClientLibPath" />

</taskdef>

<uploadToDashboard bucketBase="${Bucket}" product="${product}" projectName="${projectName}"

environment="${environment}" executionType="scenarios" credentials="${awsCredentials}" buildVersion="${buildVersion}"

reportFolder="${scenarioReports}" consoleDetails="${consoleDetails}" aiqCreds="${aiqCreds}" />

HouseKeeping

Description

Keeps a max number of builds in s3

Input Params

  • credentials="${awsCredentials}"

  • keep="${MaxBuilds}"

  • bucketBase="${Bucket}"

  • executionType="scenarios"

  • product="${product}"

  • environment="${environment}"

Output

Keeps a max number of builds in s3

Ant Task Example

<taskdef name="HouseKeeping" classname="com.appvance.ci.HouseKeeping">

<classpath refid="RestClientLibPath" />

</taskdef>

<HouseKeeping credentials="${awsCredentials}" keep="${MaxBuilds}" bucketBase="${Bucket}" executionType="scenarios" product="${product}" environment="${environment}" />

CheckScenarioResults

Description

Checks a set of JUnit results and fails if the results are worse than the expected in report.json file.

If ANY high-important TestCase fails, it will fail.

Even if every low importance fails, it won't fail because of this.

The minSucessRatio and maxFailingTestCases are applied to normal importance

Input Params

  • reportFile: The dir where the JSON report is located. If not set the default is "report/report.json".

  • minSuccessRatio: minimum allowed percentage integer (1-100) that shows the ratio of succeeded validations. If not set, it will not be tested

  • maxAllowedFailures : max allowed failed test cases. If not set it will not be tested

Output

Checks a set of JUnit results and fails if the results are worse than expected. Will do nothing if the results are good enough.

Ant Task Example

<taskdef name="checkScenarioResults" classname="com.appvance.ivy.CheckScenarioResults" >

<classpath refid="IvyPath"/>

</taskdef>

<checkScenarioResults reportFile="report/report.json" minSucessRatio ="95" maxAllowedFailures ="5" />

ProductDashboard

Description

Creates the main dashboard report for the CICD

  • reportFile: The dir where the JSON report is located. If not set the default is "report/report.json".

  • minSuccessRatio: minimum allowed percentage integer (1-100) that shows the ratio of succeeded validations. If not set, it will not be tested

  • maxAllowedFailures : max allowed failed test cases. If not set it will not be testedSinchronize the historical files and create a report with the latest results for all the history

Input Params

  • credentials="${awsCredentials}" AWS credentials

  • bucketBase="${Bucket}" AWS path to locate files

  • customer="${customer}" Customer description to show in the html

Output

Creates the main dashboard report for the CICD

Ant Task Example

<taskdef name="ProductDashboard" classname="com.appvance.ci.ProductsDashboard">

<classpath refid="RestClientLibPath" />

</taskdef>

<ProductDashboard credentials="${awsCredentials}" bucketBase="${Bucket}" customer="${customer}" />

ShutdownAIQ

Description

Shutdown and AIQ Server based on specs from the configuration file

Input Params

  • aiqCreds: The AIQ credentials are in JSON format, the same format for running a scenario. The URL is optional. if not set. The Task will use the URL from consoleDetails

{

"controller":{

"url":"http://localhost:8080",

"username":"appvance",

"password":"appvance"

}

}

  • consoleDetails: File which contains URL if it is not set in aiqCreds

{

"url":"http://localhost:8080"

}

Output

AIQ should be stopped. If not the task will fail.

Ant Task Example

<target name="stopAIQ" depends="deps">

<taskdef name="shutdown" classname="com.appvance.ci.ShutdownAIQ">

<classpath refid="RestClientLibPath" />

</taskdef>

<shutdown

aiqCreds="${aiqCreds}"

consoleDetails="${consoleDetails}" />

</target>

StopNode

Description

Stops an AIQ Machine using the information in aiqCreds.

Input:

  • aiqCreds:

{

"controller": {

"instances": ["i-07cb37f006083a225"],

"ec2Creds": "ec2.creds",

"timeOut": 60,

"username": "appvance",

"password": "appvance",

"workFolder": "."

}

}

  • dir: name of the scenario

  • consoleDetails:

Ant Tag Example

<taskdef name="stopNode" classname="com.appvance.ci.StopNode">

<classpath refid="RestClientLibPath" />

</taskdef>

<stopNode aiqCreds="${aiqCreds}" consoleDetails="${consoleDetails}" />

AddAIQUser

Description

Creates a user into AIQ.

Input Parm

  • username="${username}"

  • password="${password}"

  • role="${role}" valid values: “Admin”, “User”

  • aiqCreds="CICD/localhost.json"

Output

An user is created.

Ant Task Example

<target name="checkCreateUsers" depends="init">

<path id="TestPath">

<pathelement path="${javac.classpath}"/>

<pathelement path="${build.test.classes.dir}"/>

<pathelement path="${build.classes.dir}"/>

<pathelement location="dist/AppvanceCIClient.jar"/>

</path>

<taskdef name="forEachInDPL" classname="com.appvance.ci.ForEachInDPL" >

<classpath refid="TestPath"/>

</taskdef>

<taskdef name="addAIQUser" classname="com.appvance.ci.AddAIQUser" >

<classpath refid="TestPath"/>

</taskdef>

<forEachInDPL csv="test/com/appvance/ci/users.csv" >

<addAIQUser username="${username}" password="${password}" role="${role}" aiqCreds="CICD/localhost.json"/>

</forEachInDPL> </target>

ForEachInDPL

Description:

Receives the DPL path, the DPL type, and a task list.

Input Params

csv: "CICD/templates.csv"

type: "JsDPL" || “HashDPL”

task=<updateBlueprintTemplate input="CICD/Legacy.mbpt" output="output/original-${template}.mbpt.json" type="none" />

<updateBlueprintTemplate input="output/original-${template}.mbpt.json"

Ant Task Example

<forEachInDPL csv="CICD/templates.csv" >

<updateBlueprintTemplate input="CICD/Legacy.mbpt" output="output/original-${template}.mbpt.json" type="none" />

<updateBlueprintTemplate input="output/original-${template}.mbpt.json"

output="output/dpl-${template}.mbpt.json"

resource="CICD/templates.csv"

type="updateDataset" />

</forEachInDPL>

UpdateBlueprintTemplate

Description

Updates the Blueprint template.

Input Params

  • input="output/original-${template}.mbpt.json"

  • output="output/dpl-${template}.mbpt.json"

  • resource="CICD/templates.csv"

  • type="updateDataset"

Output

From a Blueprint template, it generates a list of modified Blueprint templates.

Ant Task Example

<target name="checkUpdateBlueprintTemplate" depends="init">

<path id="TestPath">

<pathelement path="${javac.classpath}"/>

<pathelement path="${build.test.classes.dir}"/>

<pathelement path="${build.classes.dir}"/>

<pathelement location="dist/AppvanceCIClient.jar"/>

</path>

<taskdef name="updateBlueprintTemplate" classname="com.appvance.AISG.UpdateBlueprintTemplate" >

<classpath refid="TestPath"/>

</taskdef>

<taskdef name="forEachInDPL" classname="com.appvance.ci.ForEachInDPL" >

<classpath refid="TestPath"/>

</taskdef>

<forEachInDPL csv="CICD/templates.csv" >

<updateBlueprintTemplate input="CICD/Legacy.mbpt" output="output/original-${template}.mbpt.json" type="none" />

<updateBlueprintTemplate input="output/original-${template}.mbpt.json"

output="output/dpl-${template}.mbpt.json"

resource="CICD/templates.csv"

type="updateDataset" />

</forEachInDPL>

</target>

ForEachInFolder

Description

Processes a list of files, using a pattern to filter file types inside a folder, then executes a list of tasks.

Input Params

  • folder = theFolder

  • match = theMatch

<taskdef name="forEachInFolder" classname="com.appvance.ci.ForEachInFolder" >

<classpath refid="TestPath"/>

</taskdef>

Ant Task Example

<forEachInFolder folder="testfolder">

<echo message="Filename: ${filename}${line.separator}" file="output/ForEachFolder.txt" append="true" />

</forEachInFolder>

<forEachInFolder folder="testfolder" match =".*.csv">

<echo message="Filename: ${filename}${line.separator}" file="output/ForEachMatch.txt" append="true" />

</forEachInFolder>

ExtractAutovalidations

UpdateCSVValidations

Description

Updates a CSV file according to a pattern using a replacement string.

Input Parm

  • type:

  • Possible values for type:

  • disable, enable, updateMatch.

  • input:

  • It is the CSV file path.

  • output:

  • match:

  • replace:

Ant Task Example

<target name="updateCSV" depends="deps">

<taskdef name="updateCSVData" classname="com.appvance.AISG.UpdateCSVValidation">

<classpath refid="RestClientLibPath" />

</taskdef>

<updateCSVData

type="disable || enable || updateMatch"

input="folder"

output="outputFolder"

match="getData"

replace="getContent"

/>

</target>

DownloadRepository

Description

Clones a git repository

Input Parm

  • folder="c:/pathToFutureGitFolder"

  • credentials= path to a json file with Git credentials, this is a json file as follows:

For https connection

{

"username": "*****@appvance.com",

"password": "*******",

"repository": "https://gitlab.com/pathtest/development.git ",

"branch": "branchName",

"sshPhrase": "";

"sshKey": ""

}

For ssh connection

{

"username": "theUser@appvance.com",

"password": "",

"repository": "git@gitlab.com:pathtest.git",

"branch": "master",

"sshPhrase": "thisIsMyKeyPharse"; // optional if not required by git

"sshKey": "pathToprivateKeyFile"

}

Output

Git repository is cloned in to file system

Ant Task Example

<taskdef name="downloadRepository" classname="com.appvance.ci.git.DownloadRepository">

<classpath refid="RestClientLibPath" />

</taskdef>

<downloadRepository folder="${localEmptyFolder}" credentials="${gitCredentialsFile}" />

GitReporter

Description

Generates internal Statistics

Input Parm

  • folder="${localEmptyFolder}" // location for local dashboard files

  • reportFolder= "${blueprintResults}"

  • environment="${environment}"

  • executionType="blueprints" // valid values "blueprints" || "scenarios"

  • projectName="${projectName}"

  • buildVersion="${buildVersion}"

  • product="${product}"

  • resultsFolder= "" // for AISG keep it blank, for scenario you may enter "ScenarioResults"

Output

Updates the statistics for local files

Ant Task Example

<taskdef name="gitReporter" classname="com.appvance.ci.git.GitReporter">

<classpath refid="RestClientLibPath" />

</taskdef>

<gitReporter

folder="${localEmpyFolder}"

reportFolder= "${blueprintResults}"

environment="${environment}"

executionType="blueprints"

projectName="${projectName}"

buildVersion="${buildVersion}"

product="${product}"

resultsFolder= ""

/>

History Manager

Description

Generates internal Statistics

Input Params

  • folder="${localEmpyFolder}" // location for local dashboard files

  • product="${product}"

  • environment="${environment}"

  • buildVersion="${buildVersion}"

  • executionType="blueprints" // valid values "blueprints" || "scenarios"

  • projectName="${projectName}"

Output

Updates the statistics for local files

Ant Task Example

<taskdef name="historyManager" classname="com.appvance.ci.git.HistoryManager">

<classpath refid="RestClientLibPath" />

</taskdef>

<historyManager

folder="${localEmpyFolder}"

product="${product}"

environment="${environment}"

buildVersion="${buildVersion}"

executionType="blueprints"

projectName="${projectName}"

/>

ProjectManager

Description

Generates internal Statistics

Input Params

  • folder="${localEmpyFolder}" // location for local dashboard files

  • buildVersion="${buildVersion}"

  • product="${product}"

  • environment="${environment}"

  • executionType="blueprints" // valid values "blueprints" || "scenarios"

  • customer="${customer}"

Output

Updates the statistics for local files

Ant Task Example

<taskdef name="dashboard" classname="com.appvance.ci.git.ProjectManager">

<classpath refid="RestClientLibPath" />

</taskdef>

<dashboard

folder="${localEmpyFolder}"

buildVersion="${buildVersion}"

product="${product}"

environment="${environment}"

executionType="blueprints"

customer="${customer}"

/>

ProductManager

Description

Generates internal Statistics

Input Parm

  • folder="${localEmpyFolder}" // location for local dashboard files

  • customer="${customer}"

Output

Updates the statistics for local files

Ant Task Example

<taskdef name="productManager" classname="com.appvance.ci.git.ProductManager">

<classpath refid="RestClientLibPath" />

</taskdef>

<productManager

folder="${localEmpyFolder}"

customer="${customer}"

/>

UploadRepository

Description

Commits changes into a git repository

Input Parm

  • credentials="${gitCredentials}"

  • folder="${localEmpyFolder}" // location for local dashboard files

  • customer="${customer}"

Output

Updates the statistics for local files

Ant Task Example

<taskdef name="commitReports" classname="com.appvance.ci.git.UploadRepository">

<classpath refid="RestClientLibPath" />

</taskdef>

<commitReports

credentials="${gitCredentials}"

folder="${localEmpyFolder}"

customer="${customer}"

/>

ConsumeBlueprint

Description

Detects a AISG that is loaded in memory.

Input Parm

aiqCreds="${aiqCreds}"

it’s the JSON file that contains the IQ credentials.

{

"controller":{

"url":"http://[ec2.machine.dns]:8080",

"username":"appvance",

"password":"appvance",

"workFolder":"/Users/[UserName]/workFolder" <--- for mac users

"workFolder":"c:/Users/administrator/workFolder" <--- for windows users

}

}

buildVersion="001" // define the number of copilation according to the pipeline number.

outputFolder="blueprintResults" //it’s the folder where is going to be downloaded the reports.

projectName="aProjectName" //the name that discribes to of the projet

requestMaxDuration="4000" //maximum duration per request

consoleDetails="${consoleDetails}" //

reportStatusCode="400" // minimum expected error code.

customer="${customer}" // it’s a name that describes to the customer.

Output

c:\Builds\Resources\[blueprint-name].abp

Ant Task Example

<target name="blueprintConsume" depends="ivyDeps">

<taskdef name="consumeBlueprint" classname="com.appvance.ci.ConsumeBlueprint">

<classpath refid="RestClientLibPath" />

</taskdef>

<consumeBlueprint

aiqCreds="${aiqCreds}"

buildVersion="${buildVersion}"

outputFolder="${blueprintResults}"

projectName="${projectName}"

requestMaxDuration="4000"

consoleDetails="${consoleDetails}"

reportStatusCode="400"

customer="${customer}" />

</target>

FunctionalExecuter

Description

This Ant task runs complex functional scenarios.

This Ant task does not require AIQ, but it requires Test Designer if the script uses it. You can create a report from the results of the ant task using the FunctionalReport ant task (FunctionalReport )

Qualified Class Name

com.appvance.ci.functional.FunctionalExecuter

Input Params

<taskdef name="functionalExecuter" classname="com.appvance.ci.functional.FunctionalExecuter" >

<classpath refid="CIPath"/>

</taskdef>

<functionalExecuter maxThread="1" resultFolder="${resultFolder}" testclass="${testclass}" />

The Locker & Bridge Variable support

If scripts have variables in the locker or the bridge, it is important to notice they required some details in the script java class but no change is required in the script itself

@Test

public void doFirstTestBroken() {

//Somewhere in the script this happens

new TheLocker().put("myVar", "MyValue");

//Leave the script

}

@Test(dependsOnMethods = {"doFirstTestBroken"})

public void doSecondTestBroken() {

/**

  • This is NOT 100% to succeed IT could succeed times, if you have

  • Only 1 thread BUT if you have multiple threads, the first thread could run

  • Different TestCase and

  • maxThread take a look!!! if maxThread=1 this will

  • Always work but it is not guaranteed to work with many threads

  • <functionalExecuter maxThread="10" resultFolder="p10${resultFolder}" testclass="${testclassParallel}" />

*/

//Fresh thread will run this piece

Assert.assertEquals("MyValue", new TheLocker().get("myVar"));

}

// --------------------------------------------------------------------------------

// -- DO NOT WORRY, our Shiny new Appvance CI Runner can do this and much more

// -- IF the scripts save the data in the locker you need to move it to a

// -- local variables and back to the locker for the next script

// -----------------------------------------------------------------------------

private Object myVar;

@Test

public void doFirstTestFixed() {

//Somewhere in the script this happends

new TheLocker().put("myVar", "MyValue");

//..

// Now before leaving we put it in a script level variable

myVar = new TheLocker().get("myVar");

}

@Test(dependsOnMethods = {"doFirstTestFixed"})

public void doSecondTestFixed() {

/**

  • As we do not want to change the script, so we retrieve it from local

  • script and add it to the locker of this thread*

*/

new TheLocker().put("myVar", myVar);

//Eventually the script will read it from

Assert.assertEquals("MyValue", new TheLocker().get("myVar"));

}

//------------------------------------------------

//-- For ServiceSuiteBrige & TestDesginer bridge variables

//-- Solution is simpler, you keep the bridge as Java Class variables

//--------------------------------------------------

@Test

public void doFirstServiceSuiteBridgeBroken() throws Exception {

ServiceSuiteBridge bridge = new ServiceSuiteBridge();

bridge.put("myVar", "myValue");

}

@Test(dependsOnMethods = {"doFirstServiceSuiteBridgeBroken"})

public void doSecondServiceSuiteBridgeBroken() throws Exception {

ServiceSuiteBridge bridge = new ServiceSuiteBridge();

//This will aalways fail because brige is new object

Assert.assertEquals("myValue", bridge.getVariable("myVar"));

}

//---------------------------------

// Solution is to have a setup

//---------------------------------

private ServiceSuiteBridge serviceSuiteBridge;

@BeforeClass

public void setup() throws Exception {

serviceSuiteBridge = new ServiceSuiteBridge();

}

@Test

public void doFirstServiceSuiteBridgeFixed() throws Exception {

serviceSuiteBridge.put("myVar", "myValue");

}

@Test(dependsOnMethods = {"doFirstServiceSuiteBridgeFixed"})

public void doSecondServiceSuiteBridgeFixed() throws Exception {

//This is fine as long as doFirstServiceSuiteBridgeFixed do not branch!

//CAREFULL with multiple threads accessing this bridge at the same time

// If you need to branch use same approach as the locker, save variables

//as Java class variables

Assert.assertEquals("myValue", serviceSuiteBridge.getVariable("myVar"))

FunctionalReport

Definition

These Ant tags create a report for the Appvance CI Complex Functional Runner (FunctionalExecuter ).

Qualified Class Name

com.appvance.ci.functional.FunctionalReport

Input Params

credentials File will be similar to this

AWS_ACCESS_KEY_ID=XXX

AWS_SECRET_ACCESS_KEY=XXX

REGION:us-west-2.ec2.amazonaws.com

Ouput

Upon successful ant task, the “reportFolder” will contain a correctly generated report of the execution based on the results inside the “resultsFolder”.

If the bucketBase & credentials are set, the task will find previous executions (if any) inside Amazon AWS to fill the results column.

Ant Task Example

<taskdef name="Report" classname="com.appvance.ci.functional.FunctionalReport">

<classpath refid="CIPath" />

</taskdef>

<Report

projectName="${projectName}"

resultsFolder="${resultFolder}"

reportFolder="${reportFolder}"

environment="${environment}"

credentials="${awsCredentials}"

product="${product}"

buildVersion="${buildVersion}"

bucketBase="${Bucket}" />

Dashboard Git Support

A sample of targets that are added to your build.xml will enable you to run scenarios and AISG and upload the results to a GIT repository.

You will need to provide GIT credentials in a credentials JSON file pointed by the gitCredentials property

Terminate Instance

Terminates an ec2 instance using the instance id coming from the console details file.

Input

{

"instanceId": "i-TheInstanceId",

"url": "http://[some domain goes here]:8080/TMServer/ws/TestNode"

}

Cloud File

This XML file can be encrypted by AIQ or visible in plain text, this file is required to establish a connection with AWS

<?xml version="1.0" encoding="UTF-8"?>

<cloud type="EC2" version="1">

<config-param key="AIQProtocol" value="http"/>

<config-param key="AIQPort" value="8080"/>

<config-param key="AccountName" value="XXX"/>

<config-param key="AWSKey" value="XXX"/>

<config-param key="AWSSecretAcessKey" value="XXX//XX"/>

<config-param key="AMI" value="ami-XX"/>

<config-param key="InstanceType" value="t2.xlarge"/>

<config-param key="KeyPair" value="XX"/>

<config-param key="Security" value="sg-XX"/>

<config-param key="AWSRegion" value="http://us-west-2.ec2.amazonaws.com "/>

<config-param key="vpcId" value="vpc-XX"/>

<config-param key="subnetId" value="subnet-XX"/>

</cloud>

Tag Definition

<target name="TerminateInstance" depends="deps">

<taskdef name="TerminateInstance" classname="com.appvance.ci.TerminateInstance">

<classpath refid="RestClientLibPath" />

</taskdef>

<LaunchInstance

testNodeDetails="${testNodeDetails}"

cloudFile="${cloudFile}"/>

</target>

Output

There is no output since the instance is terminated and all processes are completed.

Launch Instance

This tag can create an ec2 instance from an existing AMI.

Note:

The AMI should have everything configured:

  • AIQ running as a service

  • Database fully installed

Inputs:

Cloud File created with AIQ:

AWS Creds

Note:

These three fields are required.

AWS_ACCESS_KEY_ID=AKIAZ******

AWS_SECRET_ACCESS_KEY=eFK*****ojk/7ZCNb1fk*****Lq

REGION=us-west-2.ec2.amazonaws.com

Cloud File

This xml file can be encrypted by AIQ or visible in plain text

<?xml version="1.0" encoding="UTF-8"?>

<cloud type="EC2" version="1">

<config-param key="AIQProtocol" value="http"/>

<config-param key="AIQPort" value="8080"/>

<config-param key="AccountName" value="XXX"/>

<config-param key="AWSKey" value="XXX"/>

<config-param key="AWSSecretAcessKey" value="********"/>

<config-param key="AMI" value="ami-XXX"/>

<config-param key="InstanceType" value="t2.xlarge"/>

<config-param key="KeyPair" value="XXX"/>

<config-param key="Security" value="sg-XXX"/>

<config-param key="AWSRegion" value="http://us-west-2.ec2.amazonaws.com "/>

<config-param key="vpcId" value="vpc-XXX"/>

<config-param key="subnetId" value="subnet-XXX"/>

</cloud>

Tag Definition

<target name="LaunchInstance" depends="deps">

<taskdef name="LaunchInstance" classname="com.appvance.ci.LaunchInstance">

<classpath refid="RestClientLibPath" />

</taskdef>

<LaunchInstance

aiqCreds="${aiqCreds}"

credentials="${awsCredentials}"

testNodeDetails="${testNodeDetails}"

cloudFile="${cloudFile}"/>

</target>

Output

Updates the ConsoleDetails File:

{

"instanceId": "[auto generated instance ID]",

"url": "http://[auto generated domain]:8080/TMServer/ws/TestNode"

}

UploadReportToS3

Description

Creates a Dashboard report based on Junit results. It can handle integrations in the Junit results

Qualified Class Name:

com.appvance.AISG.UploadReportToS3

Input Params

  • fileConfig="generateRegressionScenario.json"

  • aiqCreds="controller01.json"

  • consoleDetails="consoleDetails.json"

  • logsRemoteFolder="E:/Regression/Logs"

  • projectName="moduleName"

  • outputFolder="Output"

Output

Generates a Scenario and its scripts inside the Output folder

Ant Task Example

<taskdef name="uploadReportToS3" classname="com.appvance.AISG.UploadReportToS3">

<classpath refid="RestClientLibPath" />

</taskdef>

<uploadReportToS3 buildVersion="${buildVersion}" credentials="${awsCredentials}" bucketBase="${Bucket}" executionType="blueprints"

reportFolder="${blueprintResults}" environment="${environment}" product="${product}" />


Last updated: June 26, 2023

If you have any feedback on this topic, please contact us at documentation@appvance.ai

Back to top
