AppDynamics Integration

As mentioned earlier it is very easy and simple to Integrate AppDynamics in Appvance IQ.

1. After logging in successfully go to Global Options.

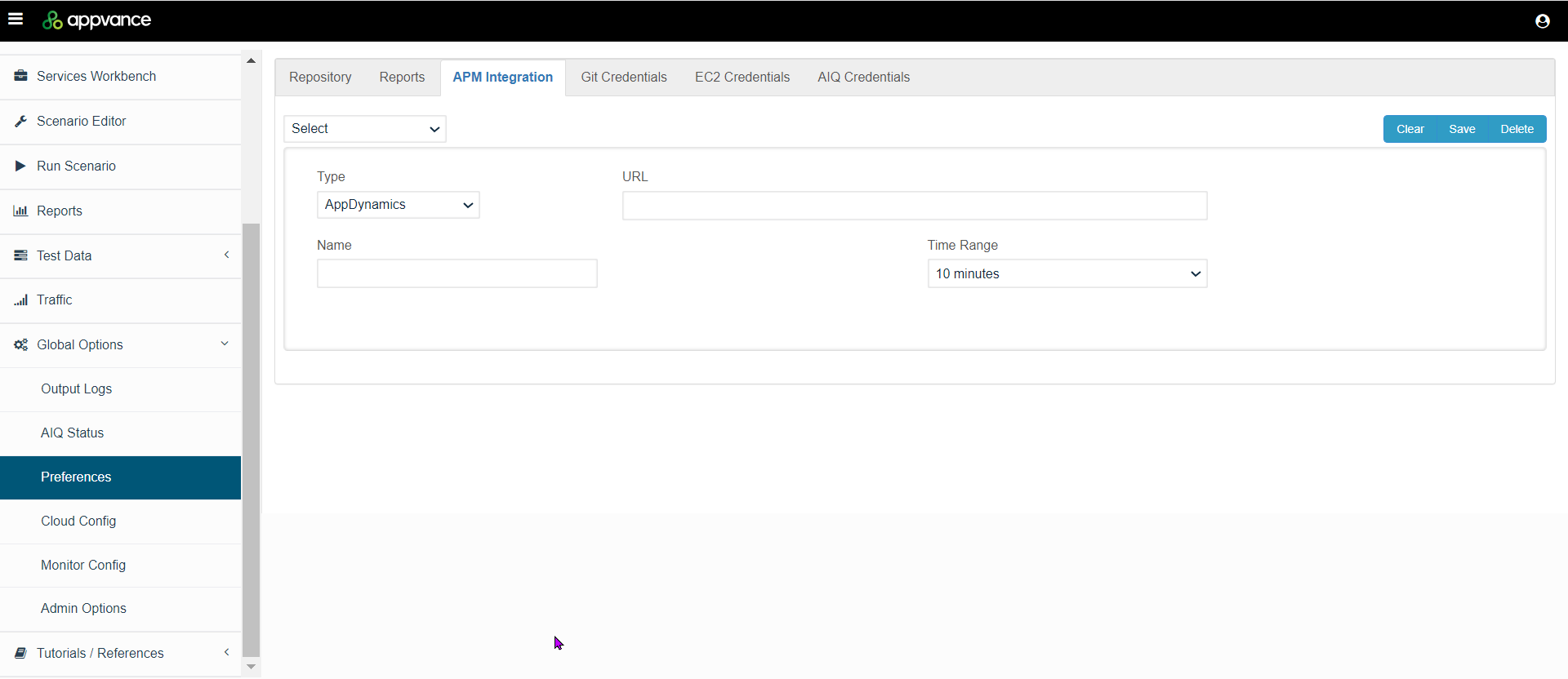

2. Under Preferences > Click APM Integration



3. Configure the following options:

   • Type: Select AppDynamics from the dropdown.

   • URL : is to simply provide the dashboard URL from AppDynamics of what you are looking for (Discussed below).

   • Name : is a text field that you can use to provide meaningful names for your Reports, say if you are monitoring Memory or CPU or something particular, you can name those with a corresponding URL from AppDynamics.

   • Time Range : Has values of 10, 30, and 60 minutes.

   • When a transaction is chosen at a given point in time (The time Range chosen is 10 mins), for example the below transaction happened at 12.41, and clicking the AppDynamics link will take you to that particular dashboard page or report page and the time range on the dashboard would be -5 minutes and + 5 minutes (i.e., 12.35 to 12.45)

     INTRO



     INTRO



4. and buttons to Clear, Save and Delete.

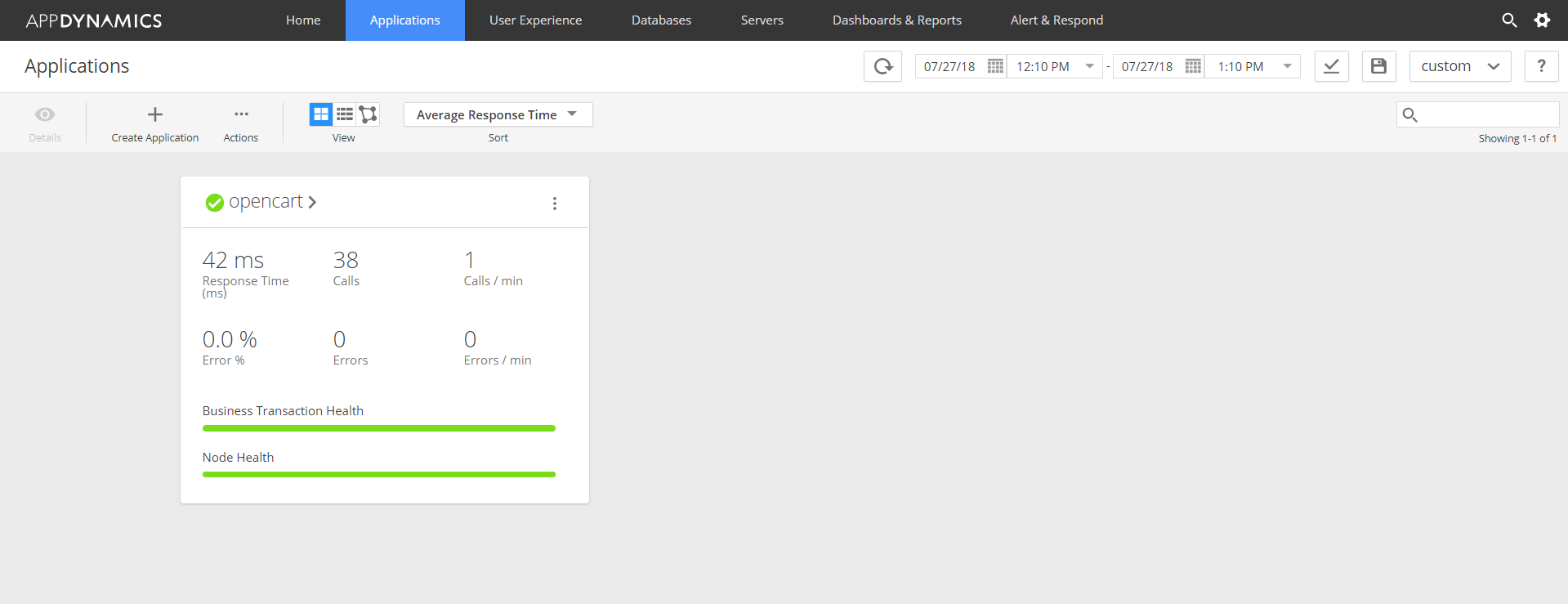

5. Log in to your AppDynamics Account and choose an Application or a Server or a DB (that is already configured) based on what needs to be monitored

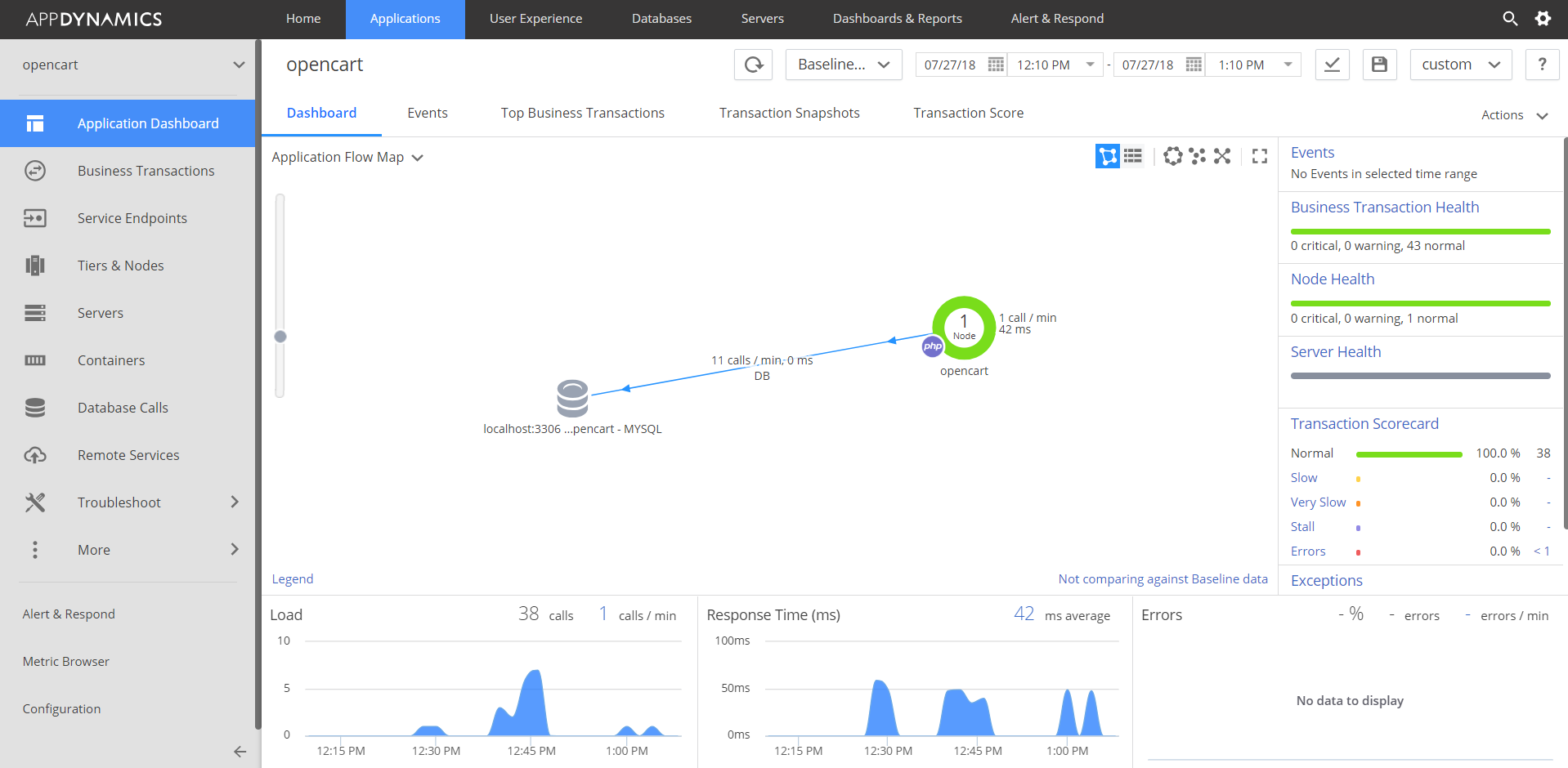

6. As seen in the below screenshot, Application Dashboard has been chosen, you can simply copy the URL from the address bar and paste it into the URL section of AppDynamics Integration and provide a meaningful name say 'Application Dashboard' and click Save

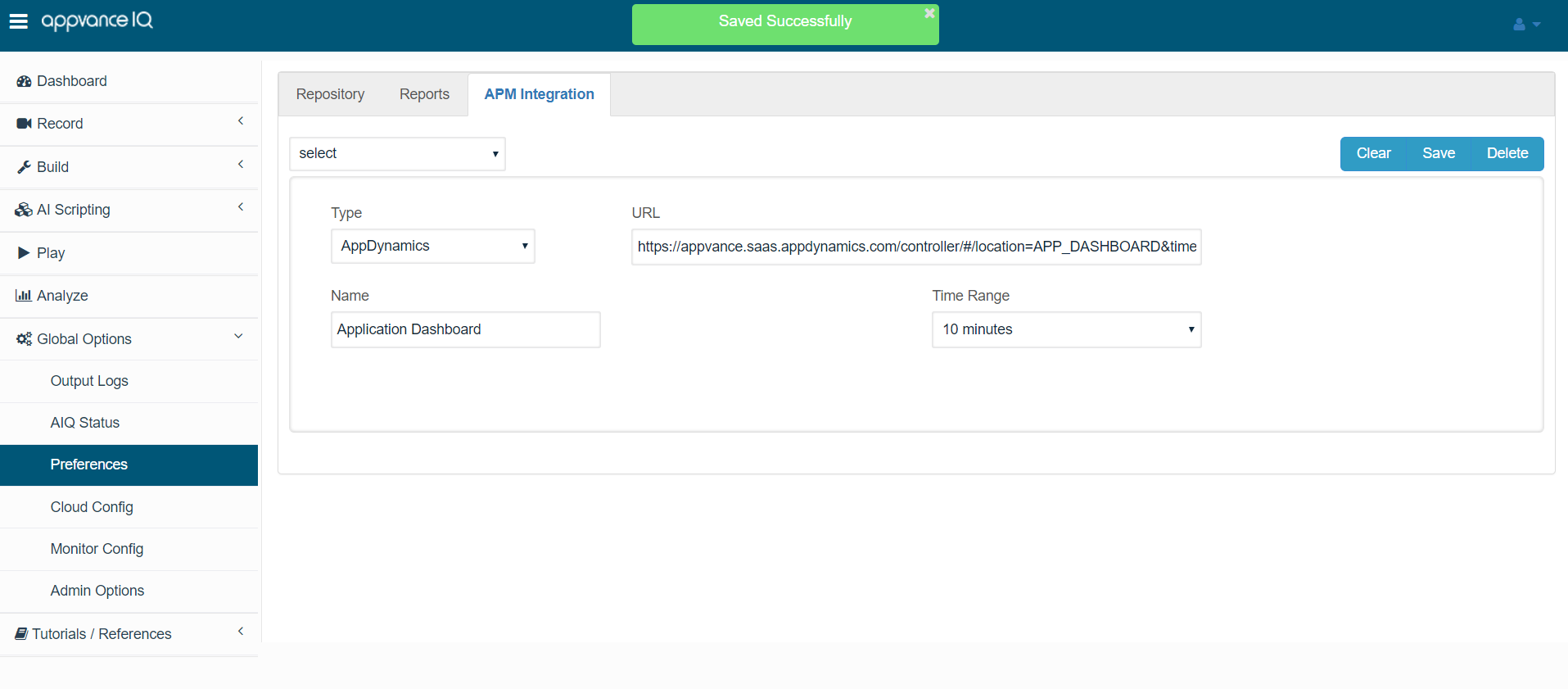

7. Below is the configuration made in Appvance IQ



8. Click Save.

9. Once the configuration is saved, go to the Scenario Builder and create your performance test on the application, save and run the scenario.

   Note: No configuration changes are required in the Scenario Builder, it is required to save more percentage of logs in the Options panel of Scenario Builder so the Test case execution graph shows some data (Example: 10% logs)

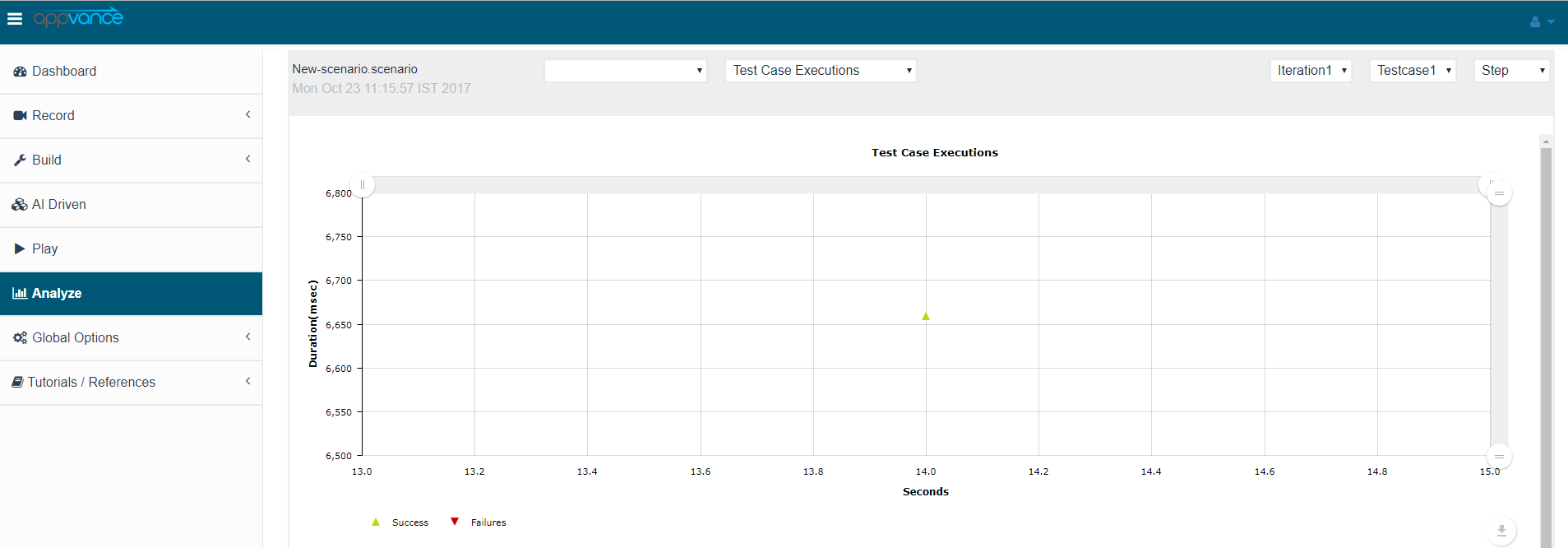

10. While the test is running (The reports shall be available during the test run and after the test is complete as well), on the Analyze page, Select Test Case Executions from the drop-down, you will notice a lot of executions that is happening for the performance test. Select Iteration and Test case from the drop-down

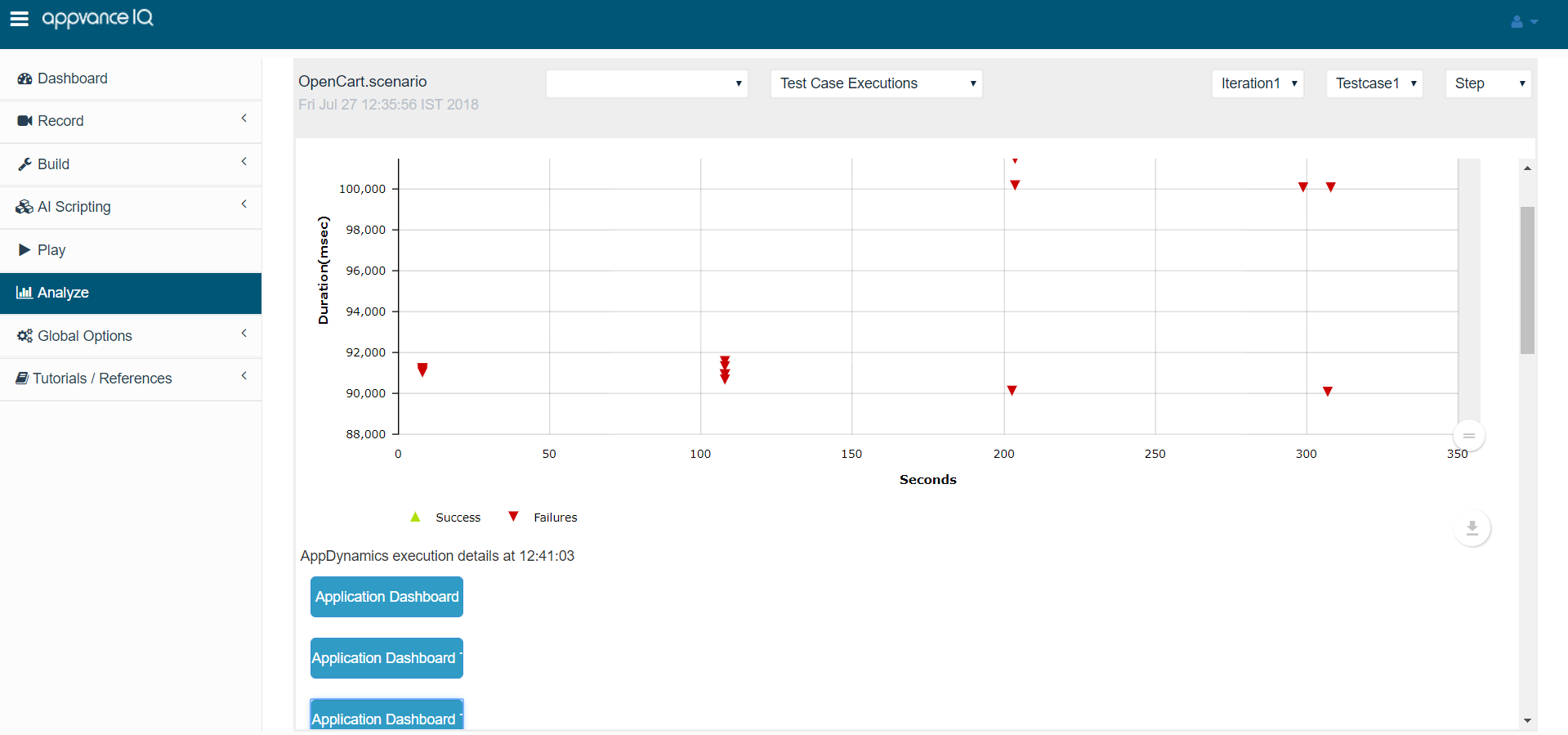

11. Click any of these small triangles that are plotted over the period of time and these are the executions that happened

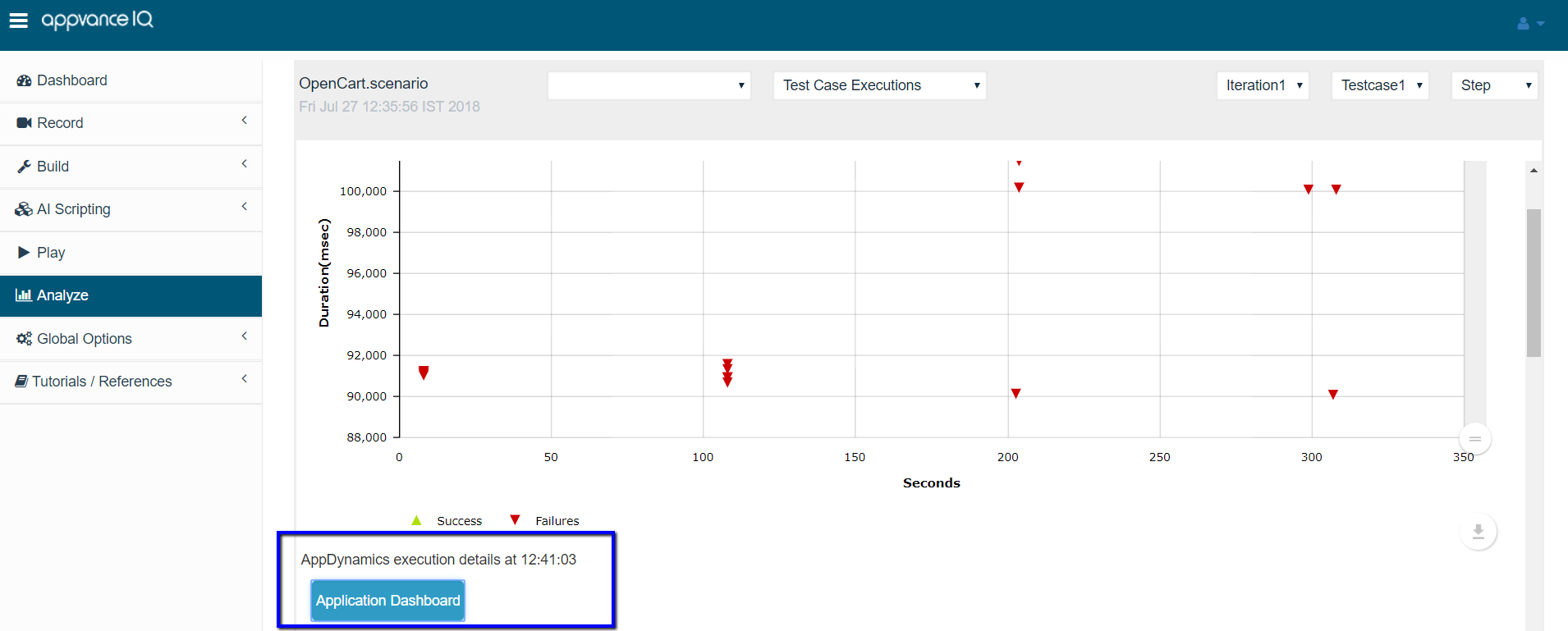

12. You will notice buttons (with what was configured at the global options for AppDynamics) at the bottom for each of these executions, you can simply click this button which will take you to the New Relic dashboard page at that point in time



    For the pages where credentials are required to log in to AppDynamics, it is required to provide the credentials.

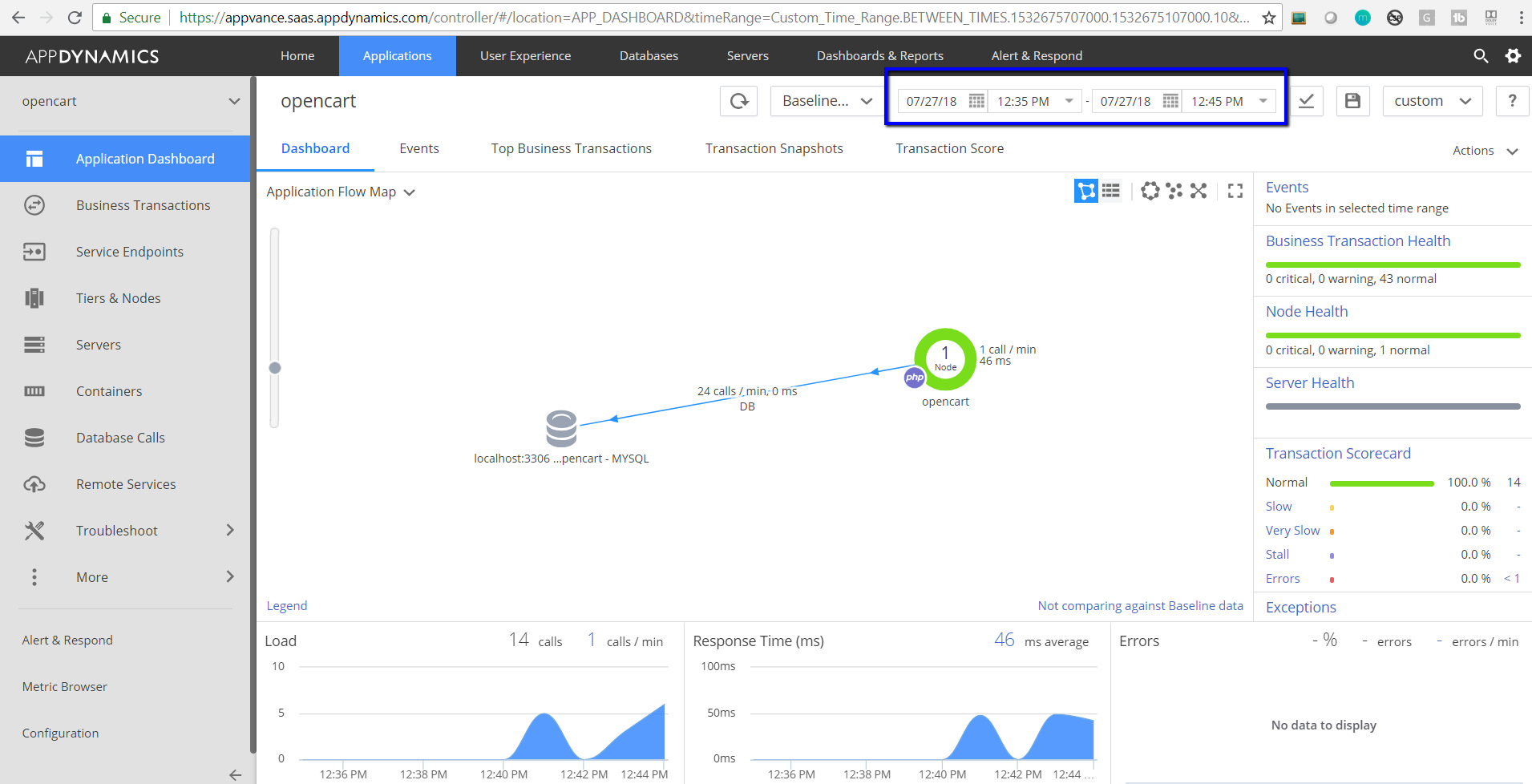

13. Similarly, you can click any small triangle on this page and click the buttons to check the app performance over the period of time from AppDynamics.

    To add, any number of configurations or processes can be added to this list which shall be displayed on the same page which you can click during that time and go to AppDynamics to check the dashboard or the reports.
